Automatic Robotic Palletizer System - EasyPalletStation

Build your robotic palletizing setup around EasyPalletStation. Choose two Euro pallet stations with an EasyPedestal (EPS-1000), or one pallet station without a pedestal (EPS-1001). The steel platform provides defined pallet positions for cobot and industrial robot applications.

Tell us your robot model, pallet size and production requirements. We can help you select the station configuration, robot mounting and project options for your line. Download the specifications below or request a quote for your application.

contact Us Get A Quote

EasyPalletStation
3D View

Downloads

options
Factsheet

EasyPalletStation – Flexible Robotic Palletizing

Choose One or Two Pallet Stations
EPS-1000 combines two Euro pallet stations with one fixed pedestal. EPS-1001 provides one pallet station without a pedestal for an existing or separately specified robot installation. A dual-station cell can support pallet exchange on one side while the robot works on the other, where the cell controls and safety configuration allow it.

Fixed Pedestal for Robot Mounting
The EPS-1000 set includes an EasyPedestal with a standard fixed height of 950 mm. Check the robot reach, mounting interface and required stacking height for your application. The robot-specific adapter plate must be selected and ordered separately.

Steel Construction and Project Options
The floor-anchored steel platform provides a stable base for pallet positioning. Scanner covers, pallet detection and other integration options should be specified for the complete cell. Explore our robotic palletizing solutions to plan the wider end-of-line process.

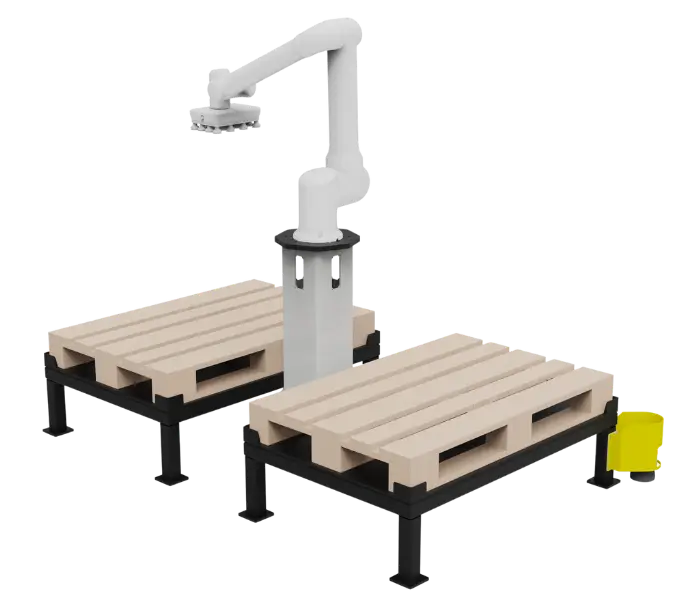

EasyPalletStation with two pallet positions, pedestal and example robot

EasyPalletStation Key Features

Cobot and Industrial Robot Integration

Configure the platform around your selected robot. Compatibility depends on the mounting adapter, reach, payload and application layout; share the exact robot model for review.

Flexible Pallet Configuration

Select the EPS-1000 dual-station set with pedestal or the EPS-1001 single station without pedestal. Match the configuration to your pallet access, floor layout and production requirements.

Configurable Installation

Specify the mechanical platform, robot interface and project options together. Installation includes floor anchoring and integration with the robot, process equipment and cell controls.

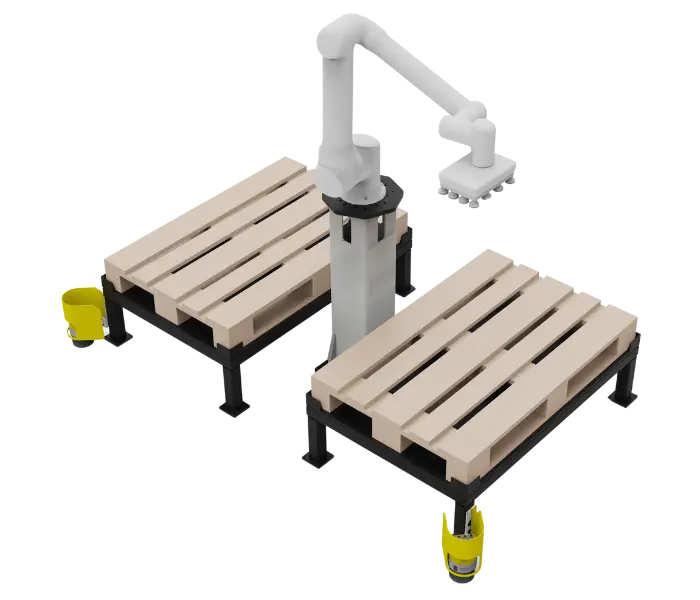

Rear view of the EasyPalletStation dual pallet configuration

Plan Your EasyPalletStation Installation

Robot and Adapter Plate Selection
Share the robot make and model, gripper weight, product weight and target stacking height. These details help confirm the required mounting adapter and whether the robot can reach the planned pallet positions.

Pallet Access and Floor Layout
The station dimensions are L: 1274 mm, W: 993 mm, H: 362 mm. Allow additional space for the pedestal, robot movement, loaded pallets, pallet handling and the cell safety arrangement. Use the drawing and product overview below when discussing your installation.

Controls and Safety Integration
Define how cartons arrive, how pallets are exchanged and how the robot interacts with the rest of the line. Pallet detection and cell safety equipment are application-specific and should be included in the integration scope.

For a relevant quotation, send your pallet dimensions, product weight, required throughput and a floor-layout sketch. Discuss your palletizing application with our team, or compare our palletizing products.

Drawing

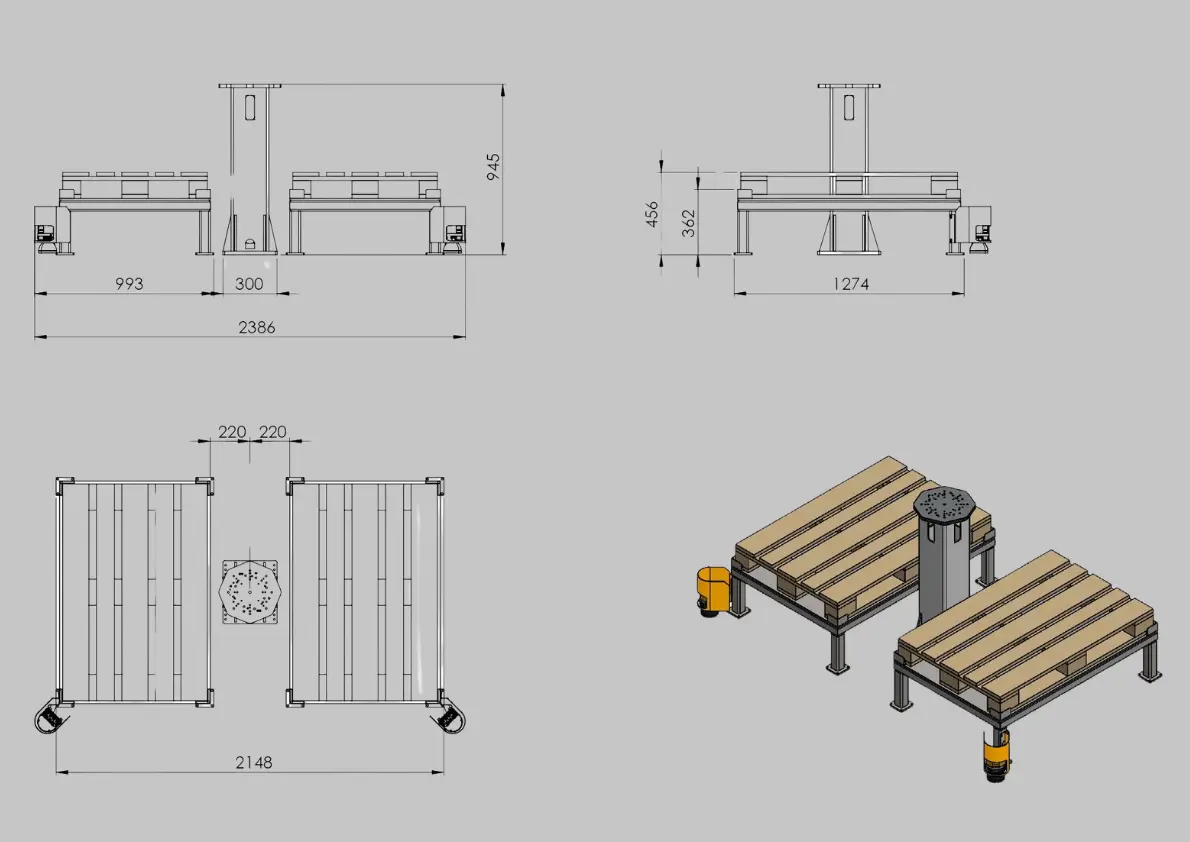

EasyPalletStation technical dimension drawing

Product Overview

EPS-1000 EasyPalletStation for Euro Pallets, In set with 1 pcs Pedestal, 2 pcs PalletStations. EasyPalletStation, In set with 1 pcs Pedestal, 2 pcs PalletStations. Dimensions: L: 1274 mm W: 993 mm H: 362 mm
EPS-1001 EasyPalletStation for Euro Pallets, 1 pcs PalletStation (without the Pedestal) EasyPalletStation for Euro Pallets, 1 pcs PalletStation. Dimensions: L: 1274 mm W: 993 mm H: 362 mm
ETP-1000 EasyTeach pendant Holder External holder for Teach pendant
SC-1000 Yellow Scanner cover Cover for laser scanner
RAL-XXXX Custom RAL code Specify your required RAL colour when requesting a quote.

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Compare the station configurations, mounting requirements and installation details before requesting a quote.

EasyPalletStation is a mechanical platform for robotic end-of-line palletizing. It provides one or two pallet positions and can be configured with a pedestal for cobot or industrial robot applications. The robot, gripper and cell integration must be specified for the project.

EasyPalletStation can be configured for cobots and industrial robots. Compatibility must be checked for the exact robot model, mounting adapter, payload, reach and cell layout. Select and order the matching robot adapter plate separately.

Yes. EPS-1000 includes two Euro pallet stations and one fixed pedestal. EPS-1001 includes one pallet station without a pedestal. Select the configuration to suit your robot installation and pallet-handling process.

The platform is designed for integration into a palletizing cell. Installation requires floor anchoring, the correct robot mounting interface and integration with process controls and the cell safety arrangement. Confirm the installation scope with your integrator.

A dual-station layout can let the robot work on one pallet position while a completed pallet is exchanged at the other, where the controls and safety configuration allow it. Actual cycle time and output depend on the complete application.

The station dimensions are L: 1274 mm, W: 993 mm, H: 362 mm. The installed cell needs additional space for the robot, pedestal, pallets, handling access and safety equipment. Share your floor layout so the complete footprint can be reviewed.

EPS-1000 includes an EasyPedestal with a standard fixed height of 950 mm. EPS-1001 is supplied without a pedestal. The adapter plate for your robot model must be selected and ordered separately.

A safety scanner cover is an available mechanical option. Sensors, scanners, guards and controls must be specified for the application. A cover alone does not provide a complete robot-cell safety system.

The station provides defined pallet positions for a robotic palletizing process, and a dual-station layout can reduce waiting during pallet exchange. To assess throughput, provide your product dimensions, weight, pallet pattern and target production rate.

Single and dual-station configurations allow the platform to be selected around your process. Future changes to the robot, pedestal or pallet-handling arrangement require a review of mounting, reach, floor layout and the complete cell integration.
