CNC Machine Tending System with High-Capacity Tray Automation
Easy LoadMate Ten represents a robust, future-ready solution for manufacturers seeking to elevate CNC machine tending through lean, high-capacity automation. By combining a rigid Ten-drawer tray system with mobile carts, dual-cart swap capability, and an external robot pedestal, it minimizes downtime while maximizing spindle utilization and production flow. Its industrial-grade structural performance ensures reliable, repeatable robotic handling even during extended unattended operation.
Designed for flexibility, the system integrates seamlessly with most leading robot brands and adapts easily to changing production demands. From improving takt time and reducing manual handling to enabling scalable, modular automation, the Easy LoadMat Ten supports true lean manufacturing across the shop floor.
Easy LoadMate Ten

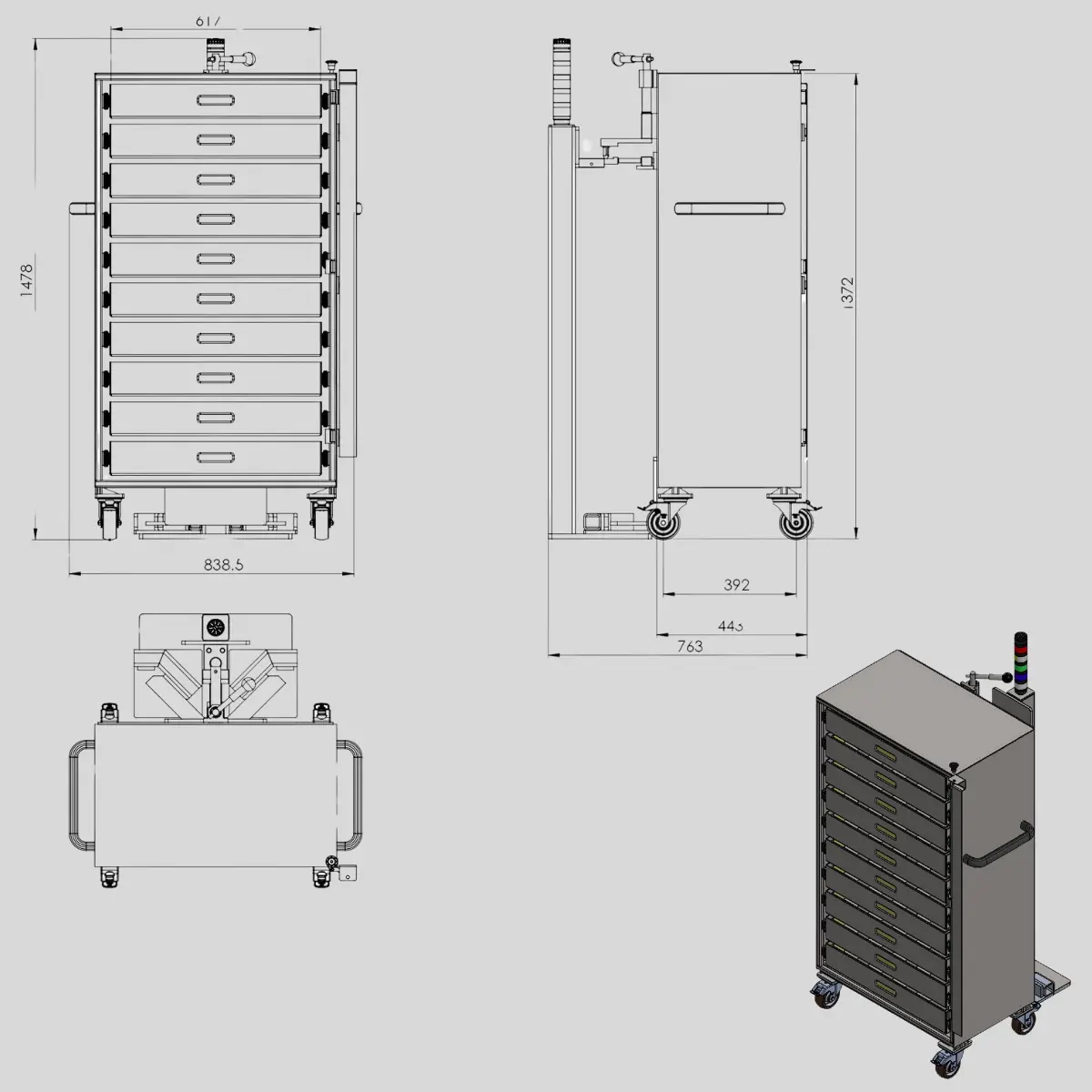

3D View
Lean Manufacturing Automation for Continuous CNC Production
A high-capacity CNC machine tending system designed for continuous production and lean manufacturing. Easy LoadMate Ten features a robust 10-drawer tray automation system, enabling extended unattended operation and efficient part handling. Its dual-cart swap design minimizes downtime by allowing offline preparation while machines continue running. Built for flexibility and seamless robot integration, it improves material flow, reduces manual handling, and maximizes spindle utilization in modern CNC production environments.
1. Next-Generation CNC Automation
The Easy LoadMate Ten is an advanced tray-handling automation cell designed to streamline CNC machine tending, reduce downtime,
and support continuous, unattended operation in lean manufacturing environments.
Built with a robust Ten-drawer tray configuration, the system provides exceptional component storage, enabling longer production runs without frequent operator intervention. 3. Industrial-Grade Strength & Precision
Each drawer supports up to 50 kg, with a maximum deflection of only 2 mm even at full load, ensuring reliable accuracy for robotic pick-and-place operations. 4. Flexible, Ergonomic & Robot-Compatible Design
Engineered for flexibility and mobility, the Easy LoadMate Ten features an ergonomic design and integrates seamlessly with most leading collaborative and industrial robot brands.
Features
Minimize Idle Time
Using two Easy LoadMate carts significantly reduces machine idle time, allowing continuous CNC operation without waiting for manual tray refills.
Quick Cart Exchange
Completed LoadMate carts can be rolled away and replaced with fully prepared ones, enabling fast, efficient, swap-and-go operation.
Maximize Productivity
This dual-cart system keeps CNC machines running at optimal spindle hours, aligning perfectly with lean production and workflow efficiency principles.
High-Capacity Lean Automation
- Robust Ten-Drawer System: Each drawer supports up to 50 kg, providing exceptional storage for extended production runs.
- Industrial Strength & Precision: Maximum drawer deflection of only 2 mm ensures consistent accuracy for robotic pick-and-place operations.
- Dual LoadMate Carts: Swap-and-go design minimizes idle time, keeps CNC machines running, and maximizes spindle hours.
- External Robot Pedestal: Provides optimal reach and rigidity, with integrated status indicators for workflow clarity and safe operation.
- Flexible, Ergonomic Design: Supports seamless integration with most leading collaborative and industrial robot brands.
- Optional Stainless Steel Version: Suitable for high hygiene or corrosion-resistant applications in harsh or cleanliness-critical environments.
Easy LoadMate Ten â ER-LM9001 is a next-generation tray-handling automation cell designed to streamline CNC machine tending and reduce downtime.
Lean Production â Designed for Flow
The Easy LoadMate Ten elevates lean manufacturing by enabling smooth material flow throughout the factory. With its mobile cart concept, you can:
- Move products easily between multiple workstations while minimizing manual handling and reducing production waste.
- Prepare new batches offline while production continues, keeping operations seamless and uninterrupted.
- Keep a fresh cart ready while another is being processed, ensuring continuous CNC machine operation and maximum productivity.
- Thanks to side tables - the storage capacity is created to support the idea of compact machinery that is the demand of todayâs industrial world on a verge of full automation.
The model ER-LM9001 supports an efficient, modular flowâperfect for facilities aiming to scale their automated operations.
