EasyPalletizer Basic: Compact Cobot Palletizer System

EasyPalletizer Basic is a compact mechanical platform for cobot palletizing, with two adjustable pallet positions and a choice of fixed pedestals or a lifting column. Configure the robot mounting and pallet guides around your conveyor, boxes and target stack height.

Planning an automated palletizing cell? Share your box dimensions and weight, pallet format, conveyor height and required boxes per minute. We can review the layout and prepare an EasyPalletizer Basic configuration and quote for your production line.

contact Us Get A Quote

EasyPalletizer Basic
3D View

Downloads

options
Factsheet

EasyPalletizer Basic – Collaborative Robot Palletizing System

Standard Arms for Pallet Docking
Two pallet positions sit to the left and right of the robot. Adjustable wings with a 500–1200 mm guide range and removable side tubes help set the pallet geometry for robotic palletizing automation. Check robot reach for every corner of the selected pallet.

Adjustable Base for Enhanced Flexibility
The prepared mounting pattern lets the pedestal move forward or backward to match the conveyor and robot reach. The platform provides a 600 × 500 mm open controller area and must be anchored to a suitable floor with M12 bolts before operation.

Custom Stainless Steel Option
A custom stainless steel configuration and scanner cover or bracket are available on request. Specify the cleaning conditions, corrosion exposure and installation requirements so the material, accessories and complete cell design can be confirmed in the quotation.

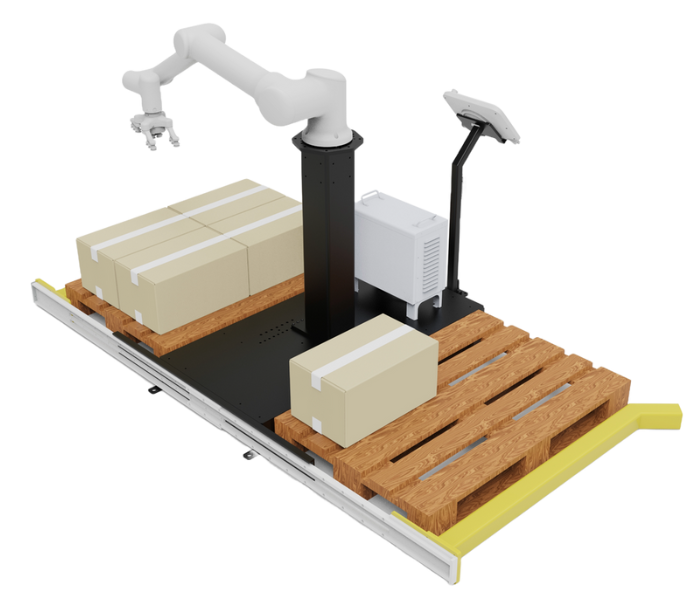

EasyPalletizer Basic mechanical platform with two pallet positions

Palletizer Basic Features

Robot Compatibility

Select the exact robot model and a suitable adapter plate. Cobot and industrial-robot installations require checks of mounting loads, reach, gripper weight and box payload. The robot-specific adapter plate is ordered separately unless included in the quotation.

Flexible Pedestal Options

Choose an 865 mm or 1200 mm fixed pedestal, or the 876–1776 mm lifting column with 900 mm stroke. Select the height around the conveyor pick point, robot reach and finished pallet stack.

Mechanical Platform

Basic provides the mechanical base and pallet guides without standard pallet sensors or I/O. The four configurations weigh 260, 330, 350 and 290 kg respectively; the robot, gripper, controls and safeguards are specified for the complete cell.

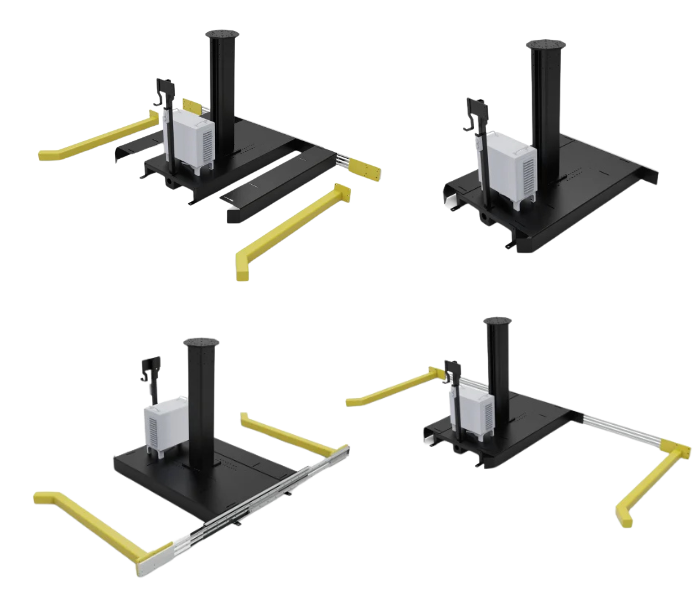

EasyPalletizer Basic pedestal and robot mounting arrangement

Flexible Pedestal Options of EasyPalletizer Basic

  • PTB-1002: Fixed pedestal at 865 mm; published platform weight 330 kg.
  • PTB-1003: Fixed pedestal at 1200 mm; published platform weight 350 kg.
  • PTB-1004: Lifting column 876–1776 mm with 900 mm stroke; published platform weight 290 kg.

PTB-1001 provides the base without a pedestal, with a published height of 140 mm and weight of 260 kg. The adjustable pedestal position and robot-specific adapter help configure the mounting arrangement. Allow space for both pallets, the conveyor and operator access when planning the full cell.

PTB-1004 adds vertical travel for palletizing applications that need height adjustment. The column range is not the maximum pallet stack height: that depends on robot reach, gripper, box dimensions and pallet layout. Confirm lifting-column controls and software support for the selected robot.

EasyPalletizer Basic: Efficient and Reliable Automation

EasyPalletizer Basic suits projects that need a mechanical foundation for automated box stacking, with the robot, gripper and controls configured for the process. Its base length is 1350 mm; the published arm span is 1867 mm fully retracted and 3655 mm fully extended. Include pallets, conveyors, access and safeguards in the complete installation layout.

For a platform with integrated pallet sensing and operator controls, compare EasyPalletizer and EasyPalletizer Pro. If your conveyor layout, robot mounting or material requirements differ, discuss customized automation solutions.

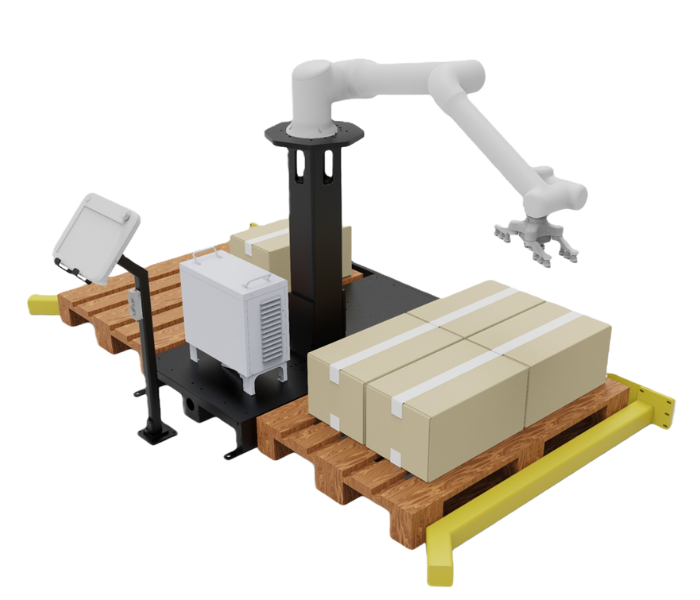

EasyPalletizer Basic configured for cobot palletizing

EasyPalletizer Basic Video

Drawing

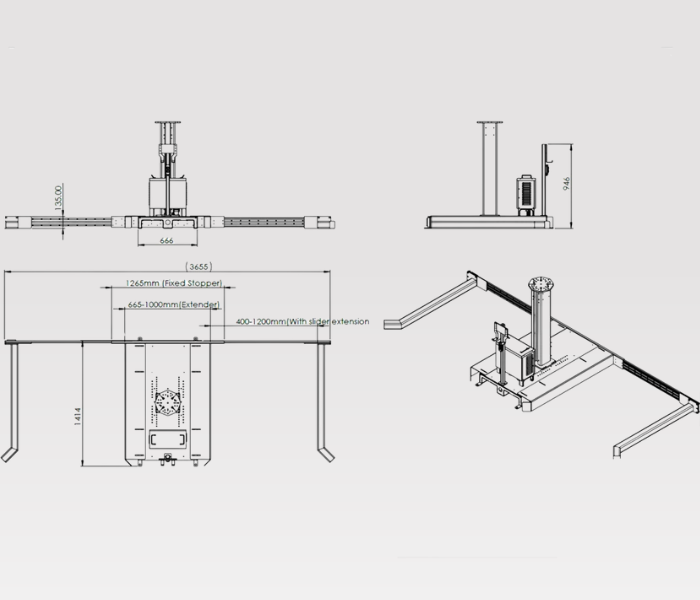

EasyPalletizer Basic platform and pallet-guide drawing

Product Overview

PTB-1001 EasyPalletizer Basic without pedestal Base without pedestal: H 140 mm, L 1350 mm, weight 260 kg. Two adjustable pallet positions; overall arm span 1867 mm retracted to 3655 mm extended.
PTB-1002 EasyPalletizer Basic with fixed pedestal 865 mm Fixed pedestal 865 mm; L 1350 mm; weight 330 kg. Two adjustable pallet positions; overall arm span 1867 mm retracted to 3655 mm extended.
PTB-1003 EasyPalletizer Basic with fixed pedestal 1200mm Fixed pedestal 1200 mm; L 1350 mm; weight 350 kg. Two adjustable pallet positions; overall arm span 1867 mm retracted to 3655 mm extended.
PTB-1004 EasyPalletizer Basic with Lifting column 876-1776mm Lifting column 876–1776 mm with 900 mm stroke; L 1350 mm; weight 290 kg. Two adjustable pallet positions; overall arm span 1867 mm retracted to 3655 mm extended.
SC-1001 Yellow Scanner cover Cover for laser scanner
RAL-XXXX Custom RAL code RAL Code XXXXX

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Review the mechanical platform, pedestal options, pallet formats and installation requirements before requesting an EasyPalletizer Basic quote.

EasyPalletizer Basic is a mechanical platform for robotic palletizing with two adjustable pallet positions, one on each side of the robot. It is available without a pedestal, with a fixed pedestal or with a lifting column. The robot, gripper, controls and application integration are specified for the complete cell.

The platform can support suitable cobots and selected industrial robots after technical review. Provide the exact robot model so its adapter plate, mounting loads, reach and combined gripper-and-product load can be checked. Order the robot-specific adapter plate separately unless it is included in the quotation.

Published formats include GMA 1219 × 1016 mm, EUR1 1200 × 800 mm, EUR3 1200 × 1000 mm, GLOB 1067 × 1067 mm, APAC 1100 × 1100 mm and AUS 1165 × 1165 mm. The adjustable wings have a 500–1200 mm guide range. Confirm the guide setup, robot reach and stacking pattern for the selected pallet.

PTB-1001 is the base without a pedestal. PTB-1002 has a fixed 865 mm pedestal and PTB-1003 has a fixed 1200 mm pedestal. PTB-1004 has an 876–1776 mm lifting-column range with 900 mm stroke. The column range is not a guaranteed pallet stack height.

The platform can be relocated when a production line changes. It must be anchored to a suitable floor with M12 bolts before operation. After moving it, check robot positions, pallet guides, controls and safeguards before restarting production.

Base length is 1350 mm, with a published arm span of 1867 mm fully retracted and 3655 mm fully extended. PTB-1001 has a 140 mm base height and weighs 260 kg. PTB-1002 weighs 330 kg, PTB-1003 weighs 350 kg and PTB-1004 weighs 290 kg. These are platform specifications; allow additional space and load for the robot, gripper, pallets, conveyors and other equipment.

A custom stainless steel configuration is available on request. Provide the cleaning conditions, corrosion exposure and material requirements so the proposed configuration and its suitability can be confirmed in the quotation.

The Basic platform is supplied without standard pallet-detection sensors or I/O. Pallet detection, process controls and any scanner system are specified as part of the complete application. For PTB-1004, confirm the lifting-column interface and robot software support for the chosen configuration.

Installation requires a suitable floor and M12 anchoring, an approved robot and adapter, a gripper, controls, conveyor interfaces and the safeguards defined for the cell. The controller area is 600 × 500 mm with open height. The complete installation must be configured and commissioned for its intended process.

Send box dimensions and weight, pallet format, target stack height, conveyor height and required boxes per minute. Include the robot model if selected, available floor space and a layout or photos. State the preferred pedestal or lifting column, and any stainless steel or special control requirements.
