EasyDesk Enclosure - Compact Enclosed Robot Cell
EasyDesk Enclosure adds a rigid, full-view upper housing to an EasyDesk robot workstation, with large transparent panels and a full-size hinged front door. Compare the Alu surface for fixtures with the Tray surface for repeatable part loading. Share your robot model, part dimensions and application to request an enclosure quote.
EasyDesk Enclosure ED-1001-EC is an upper housing for all EasyDesk variants. Large viewing panels and a hinged front door provide visibility and access to the robot workspace. The upper enclosure measures L 1200 × W 800 × H 1220 mm and weighs 105 kg; the EasyDesk base is separate.
Combine the enclosure with the EasyDesk work surface that suits your process. The Alu configuration supports fixtures and tooling, while the Tray configuration presents parts for repeatable loading. Confirm robot reach, tooling clearance, access and the complete installed footprint for your application.
Large Viewing Panels
Transparent front and side panels provide a clear view of the robot, tooling and parts during setup and production.
Wide Front Access
A full-size hinged door with external handle supports loading, setup, fixture changes, and service without removing the enclosure.
Integrated Robot Workspace
Select the robot model and adapter plate for the required reach and loads. The EasyDesk robot mount can be repositioned along three working sides, subject to enclosure clearance.
Controller Compartment
Lower cabinet houses the controller on a slide-out drawer with a locking pin and guided energy chain cable routing.
Flexible Operator Interface
The teach pendant bracket mounts parallel or perpendicular to suit the robot brand and operator position.
Stable Installation
Adjustable feet simplify levelling. The workstation is securely anchored to the floor during operation via Ø18mm anchor holes.
⚠️ Integration Note
EasyDesk Enclosure is a mechanical cell component. The complete installation — robot, gripper, fixtures, electrical equipment and process — must be risk assessed and validated according to applicable regulations. Additional interlocks, extraction or safety devices may be required for the chosen application.
One Enclosure. Two EasyDesk Configurations.
Both variants use the same EasyDesk base architecture, controller compartment, and compact footprint. Select the work surface that matches the process.
Aluminium work surface for flexible fixturing and process equipment.
✔ Ideal for jigs, sensors, gauges, nests and custom tooling
✔ Easy to reconfigure for changing products and short production runs
✔ Well suited to assembly, inspection, polishing and custom automation
High-capacity parts presentation for repeatable loading and unloading.
✔ 2 mm parts tray; pattern and capacity selected for your components
✔ Custom tray layouts available for specific components
✔ Supports automated feeding of CNC machines and other processes
📐 Robot Mounting Flexibility
The re-attachable EasyDesk robot mounting plate can be positioned along three working sides. The final position is selected according to robot reach, tooling configuration, and enclosure layout.
Typical applications: CNC machine tending · Bin picking · Assembly · Measurement · Quality control · Polishing · Deburring · Grinding · Welding*
*Process-specific guarding, extraction and validation may be required.
Technical Specifications
| EASYDESK PLATFORM DATA | |
|---|---|
| Base platform length | 1,200 mm |
| Base platform width | 890 mm |
| Nominal work surface depth | 800 mm; usable area depends on the selected surface |
| Reference base height — Tray / Alu | 902 mm / 932 mm; upper enclosure excluded |
| Overall length with side hardware | up to 1,550 mm |
| Floor anchoring pattern | 840 × 1,060 mm |
| Anchor hole diameter | Ø18 mm |
| Reference base weight — Tray / Alu | 330 kg / 305 kg; upper enclosure excluded |
| Teach pendant bracket | Parallel or perpendicular |
| Controller integration | Slide-out drawer + energy chain |
| Work surface configurations shown | Alu or Tray; confirm tray pattern and capacity |
| Robot compatibility | Confirm the exact model, adapter plate, reach, loads and clearances |

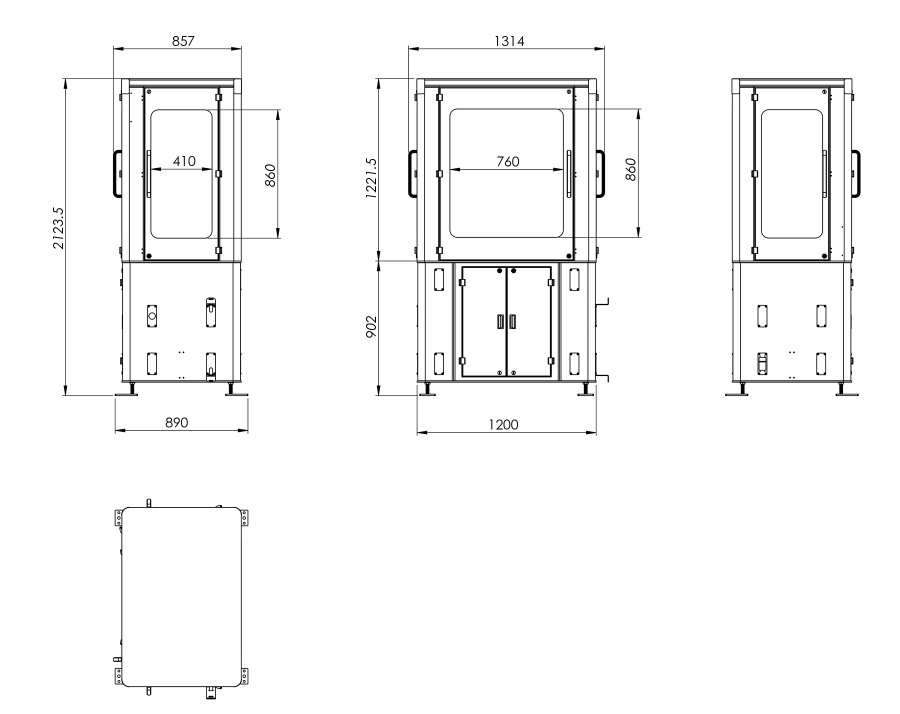

Technical Drawing
EasyDesk Enclosure platform dimensions — schematic not to scale. Confirm final general arrangement drawing before installation.
📋 Configuration Note
The table and drawing describe the EasyDesk base platform. The ED-1001-EC upper enclosure is a separate 105 kg component measuring L 1200 × W 800 × H 1220 mm, with a closed roof and transparent windows of 850 × 700 mm and 850 × 375 mm. Confirm the complete installed height, footprint, weight and access clearances in the final arrangement drawing.
Specify when ordering:
• Alu or Tray version
• Robot make and model
• Process and part size
• Required safety concept
Product Overview

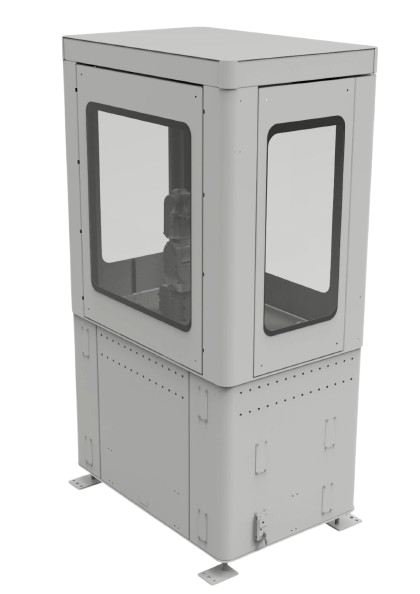

EasyDesk Enclosure — rear and side view of the upper housing and controller cabinet

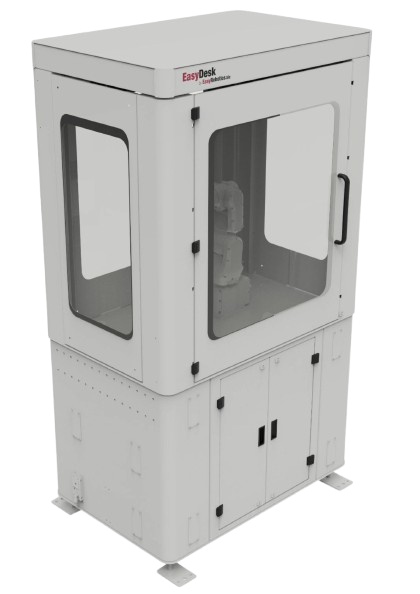

EasyDesk Enclosure — front view with transparent panels and a hinged access door
Product Order Overview
| ED-1001-EC | EasyDesk Enclosure - Compact Enclosed Robot Cell | Upper enclosure for all EasyDesk variants. L 1200 × W 800 × H 1220 mm; 105 kg. EasyDesk base, robot and equipment supplied separately unless included in the quotation. |
| SC-1000 | Yellow Scanner cover | Cover for laser scanner |
| RAL-XXXX | Custom RAL code | RAL Code XXXXX |
