Compact Robot Feeder Cell for CNC Machine Tending
ProFeeder Compact stores workpieces for CNC machine tending in a 920 × 770 mm footprint. Choose 3 or 6 trays rated at 60 kg per tray, or 5 or 10 trays rated at 120 kg per tray. Pair this feeder with a separate robot pedestal for robot mounting and controller storage.
MechLock and AirLock versions are available. Share your CNC machine, robot model, part dimensions, weight and cycle time to discuss the right tray configuration and request a project quote.
ProFeeder Compact
3D View

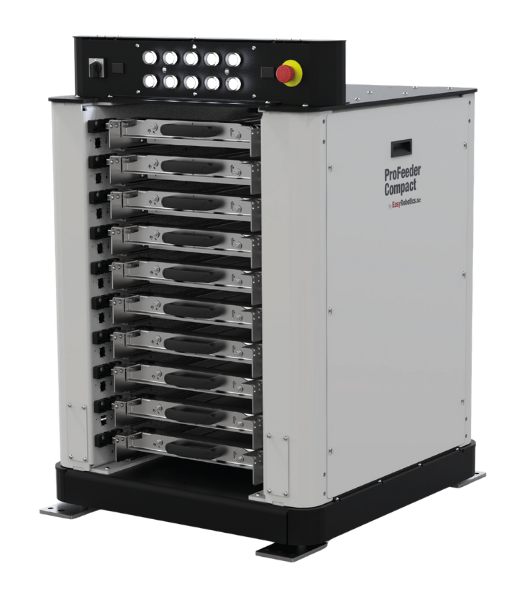

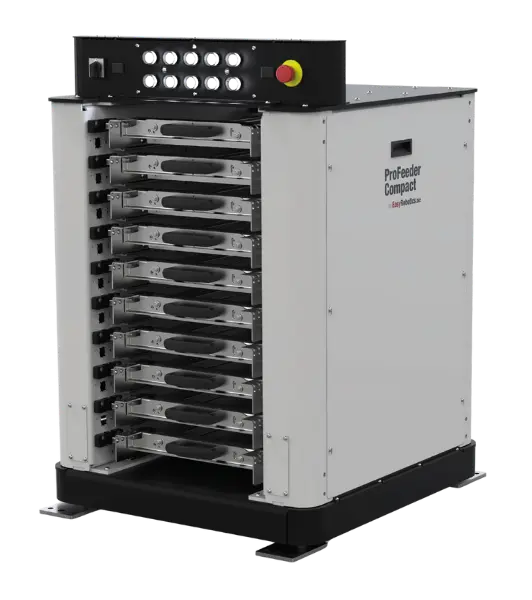

ProFeeder Compact robot arm supply base
ProFeeder Compact is an industrial parts feeder from EasyRobotics in Sønderborg, Denmark. Its drawer system organizes workpieces for CNC machine tending automation, helping a robot supply parts to the machine between operator replenishment visits.
The feeder uses a separate robot pedestal. Choose EasyPedestal or another validated stand for the robot arm and controller. The selected robot model, mounting adapter, payload, reach and gripper must suit your workpieces and machine layout.
Optional wheels support controlled relocation between work areas. Position, level and anchor the feeder before operation, allowing space for extended drawers, robot movement and operator access.
Each tray has a 350 × 550 mm working area. Maximum part height is 240 mm with 3 trays, 120 mm with 6 trays, 160 mm with 5 trays or 80 mm with 10 trays. Select the configuration around part geometry, fixtures and batch quantity.
Request a ProFeeder Compact quote with your required tray capacity and locking option. Include the robot pedestal, adapter, part fixtures and machine interface in the project scope so the proposed system matches your production requirements.
Features of ProFeeder Compact
Two Locking Options

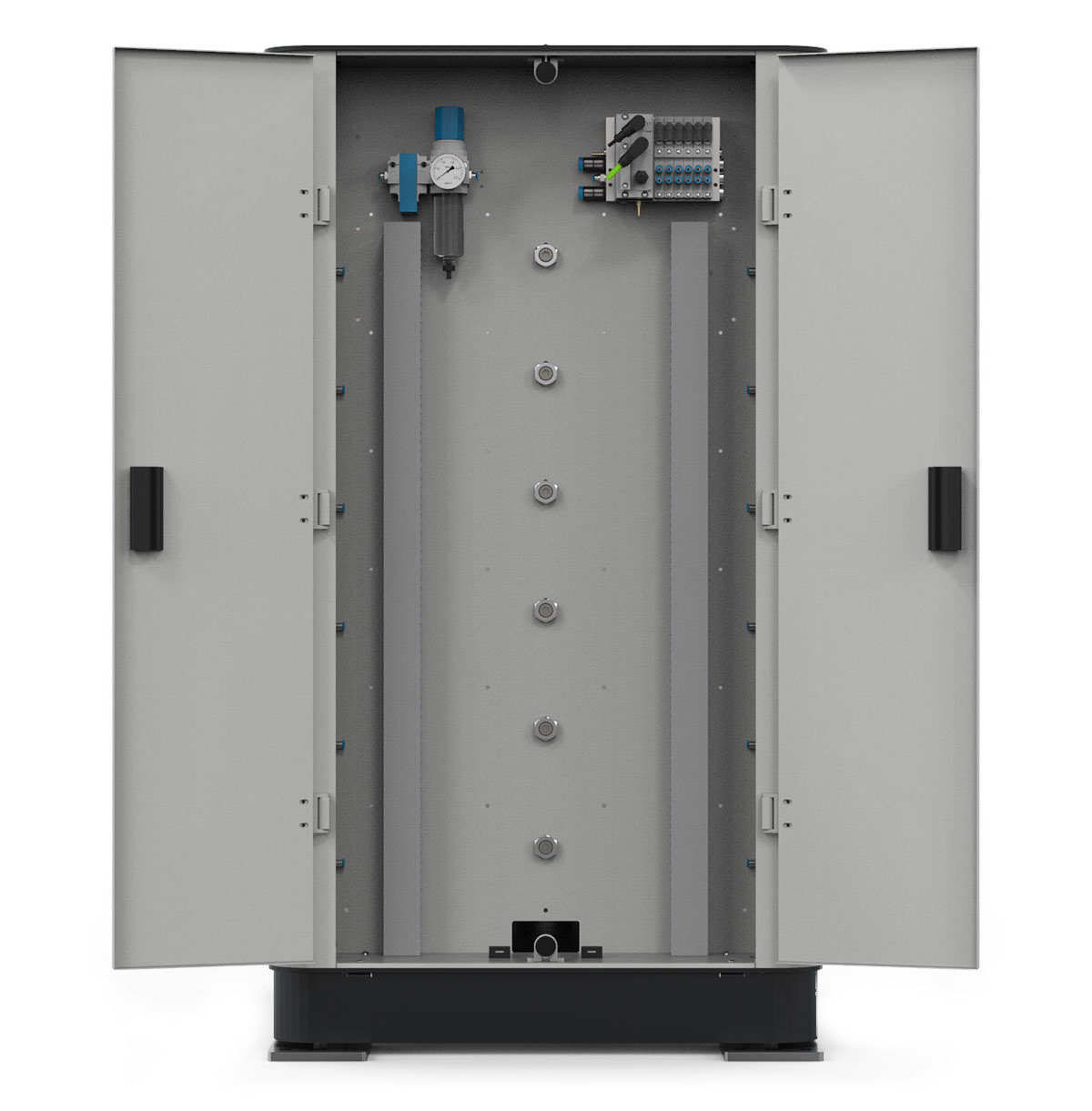

MechLock uses a mechanical release. AirLock uses pneumatic locking with digital I/O. Part-specific tray fixtures and an optional floor dock can be specified for the application.
Space-Saving Capacity
Footprint: L 920 × W 770 mm. Height: 1050 mm for MechLock or 1165 mm for AirLock. Choose 3, 5, 6 or 10 trays to match part size and batch quantity.
Mobility & Integration
Optional wheels support relocation before the feeder is secured for use. A separate EasyPedestal or validated robot stand provides robot mounting and controller storage.
Functions of ProFeeder Compact
The feeder can be approached from four sides, giving flexibility when planning the robot position beside a CNC machine. Confirm drawer access and robot reach in the proposed layout.

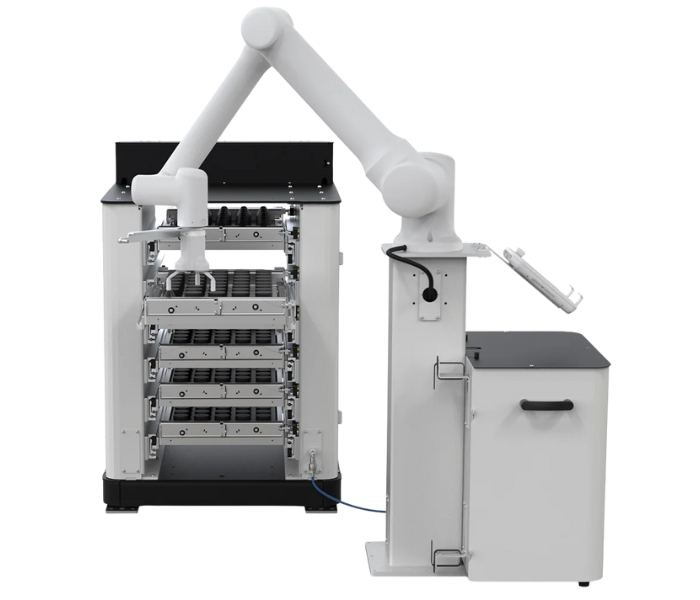

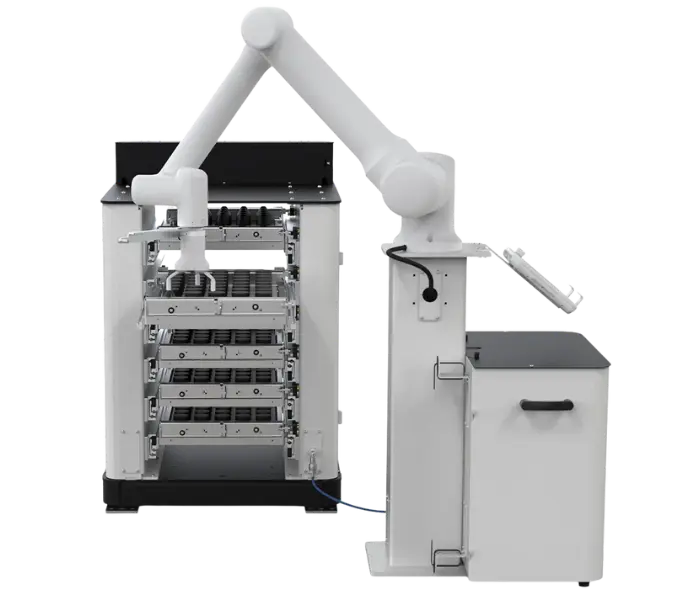

Combine the feeder with EasyPedestal or another validated robot pedestal. Order the pedestal and robot-specific adapter separately as required by the project configuration.
Position the system near the selected machine and verify the robot loading and unloading path. Any relocation requires the feeder to be secured and the machine setup checked again before operation.

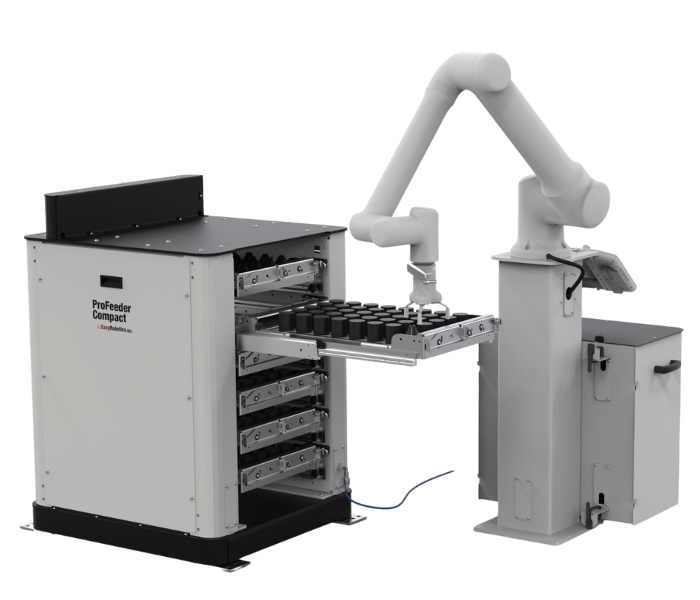

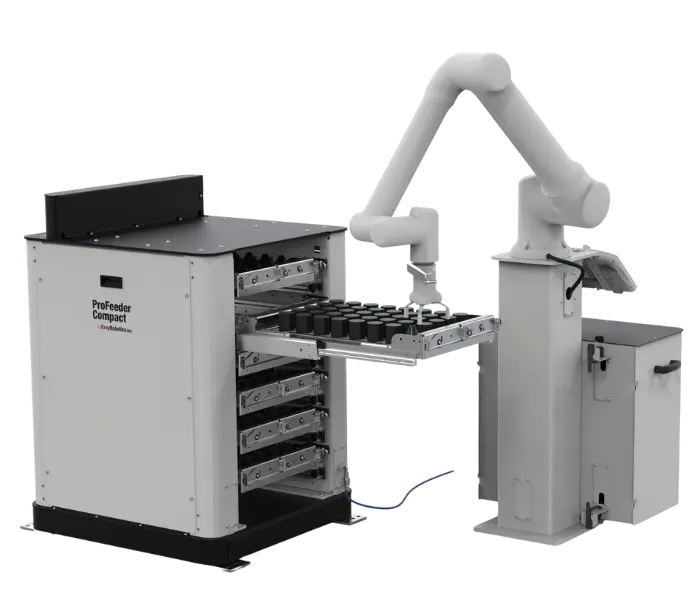

Up to 10 trays provide a supply of parts between replenishment visits. Fixtures, part spacing, robot programs and the machine interface must suit each workpiece and machining process.
AirLock requires compressed air and digital I/O integration. Explore EasyControl machine tending software for the proposed controls setup. Safeguarding and operating procedures must be assessed for the complete robot cell.
Compact Footprint & Benefits of ProFeeder Compact
ProFeeder Compact combines drawer-based parts storage with a small footprint. Select tray capacity and part layout to reduce repetitive manual handling and plan replenishment around your machining cycle.
Benefits
- 920 × 770 mm feeder footprint
- More parts available between replenishment visits
- Tray options for different batch quantities
- Adaptability of different parts
- Customized trays
Applications Supported:
The feeder supplies parts within a suitably configured robot cell for applications including:
- Machine tending
- Polishing
- Welding
- Assembly
- Measurement
ProFeeder Compact video

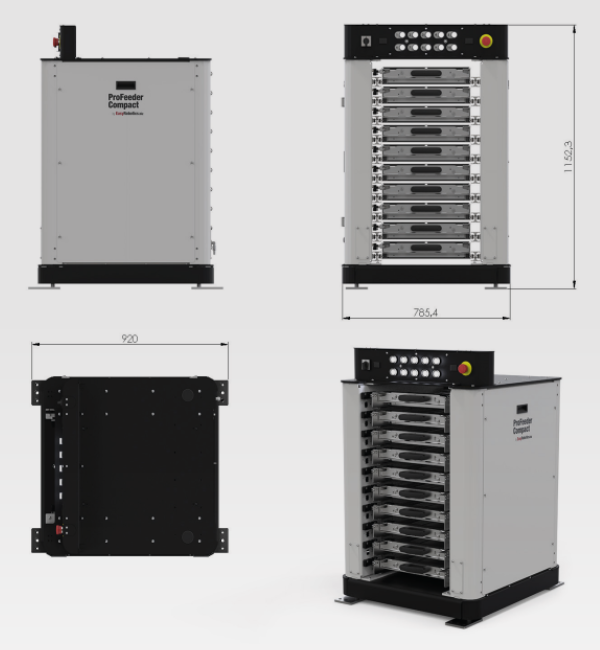

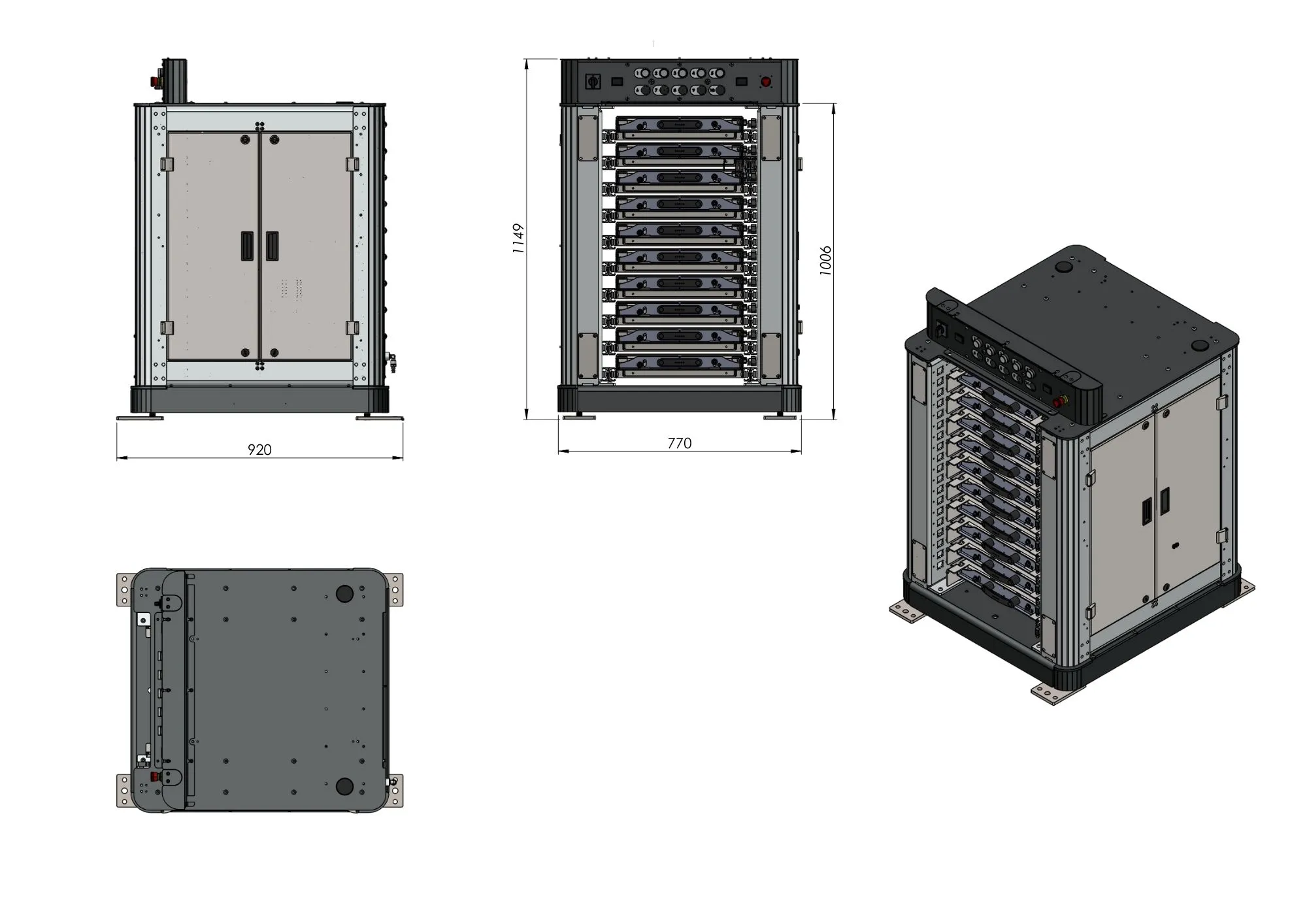

Drawing
Product Overview
| PFC-1010-03 | ProFeeder Compact 3x 60kg tray w. Mechlock | H: 1050 mm, W: 770, L: 920, Wt: 270 kg, 3x 350x550mm tray area, 2,5mm deflection at 60kg/tray, Max part height 240mm, Mechlock |
| PFC-1011-03 | ProFeeder Compact 3x 60kg tray w. Airlock | H: 1165 mm, W: 770, L: 920, Wt: 285 kg, 3x 350x550mm tray area, 2,5mm deflection at 60kg/tray, Max part height 240mm, Airlock |
| PFC-1010-06 | ProFeeder Compact 6x 60kg tray w. Mechlock | H: 1050 mm, W: 770, L: 920, Wt: 315 kg, 6x 350x550mm tray area, 2,5mm deflection at 60kg/tray, Max part height 120mm, Mechlock |
| PFC-1011-06 | ProFeeder Compact 6x 60kg tray w. Airlock | H: 1165 mm, W: 770, L: 920, Wt: 330 kg, 6x 350x550mm tray area, 2,5mm deflection at 60kg/tray, Max part height 120mm, Airlock |
| PFC-1100-05 | ProFeeder Compact 5x 120kg tray w. Mechlock | H: 1050 mm, W: 770, L: 920, Wt: 350 kg, 5x 350x550mm tray area, 2,5mm deflection at 120kg/tray, Max part height 160mm, Mechlock |
| PFC-1101-05 | ProFeeder Compact 5x 120kg tray w. Airlock | H: 1165 mm, W: 770, L: 920, Wt: 365 kg, 5x 350x550mm tray area, 2,5mm deflection at 120kg/tray, Max part height 160mm, Airlock |
| PFC-1100-10 | ProFeeder Compact 10x 120kg tray w. Mechlock | H: 1050 mm, W: 770, L: 920, Wt: 480 kg, 10x 350x550mm tray area, 2,5mm deflection at 120kg/tray, Max part height 80mm, Mechlock |
| PFC-1101-10 | ProFeeder Compact 10x 120kg tray w. Airlock | H: 1165 mm, W: 770, L: 920, Wt: 495 kg, 10x 350x550mm tray area, 2,5mm deflection at 120kg/tray, Max part height 80mm, Airlock |
| SC-1000 | Yellow Scanner cover | Cover for laser scanner |
| RAL-XXXX | Custom RAL code | RAL Code XXXXX |
