EasyDesk Safety Enclosure

EasyDesk Safety Enclosure for Cobot Workstations

Define the robot workspace while keeping the process in view. EasyDesk Safety Enclosure combines a steel frame, transparent polycarbonate panels and an open roof, with two enclosure configurations for EasyDesk workstations.

Choose the two-wall ED-1002-SE or ED-1003-SE with extension. Send your EasyDesk model, robot model, part size and application to request a quote for the enclosure and required access options.

Contact Us Get A Quote

EasyDesk Safety Enclosure
3D View

EasyDesk Safety Enclosure

options
Specifications

EasyEnclosure for Larger Robot Workspaces

For a separate enclosure around a larger robot workstation, compare EasyEnclosure. This model measures L 2400 × W 3800 × H 2383 mm and has a solid metal frame with double sliding doors.

EasyEnclosure and EasyDesk Safety Enclosure have different footprints and mounting arrangements. Select the enclosure around the robot reach, workpiece size, loading method and process. For welding or laser processing, confirm the required panels, doors, roof and extraction as part of the installation.

Enclosure Specifications

  • Metal frame: Solid 3 mm metal construction for the separate EasyEnclosure model.
  • Double sliding doors: Provide access to the larger robot workspace for loading and servicing.
  • Overall size: L 2400 × W 3800 × H 2383 mm. Allow additional floor space for loading, services and maintenance.

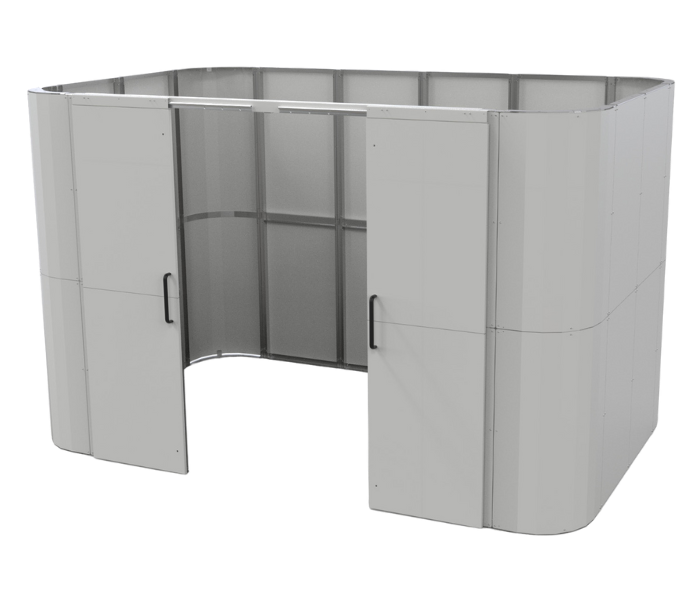

EasyEnclosure with double sliding doors for a larger robot workspace

EasyDesk Safety Enclosure

EasyDesk Safety Enclosure mounts to an EasyDesk workstation to define the robot workspace. A steel frame and transparent polycarbonate panels keep the process visible. Both configurations have an open roof, a grey standard finish and 550 x 500 mm transparent windows.

Select the enclosure model for your EasyDesk Tray or EasyDesk Alu workstation and check the exact mounting arrangement. Specify any access doors, interlocks or light curtains in the quotation. If you need a full-view upper housing with front-door access, compare EasyDesk Enclosure.

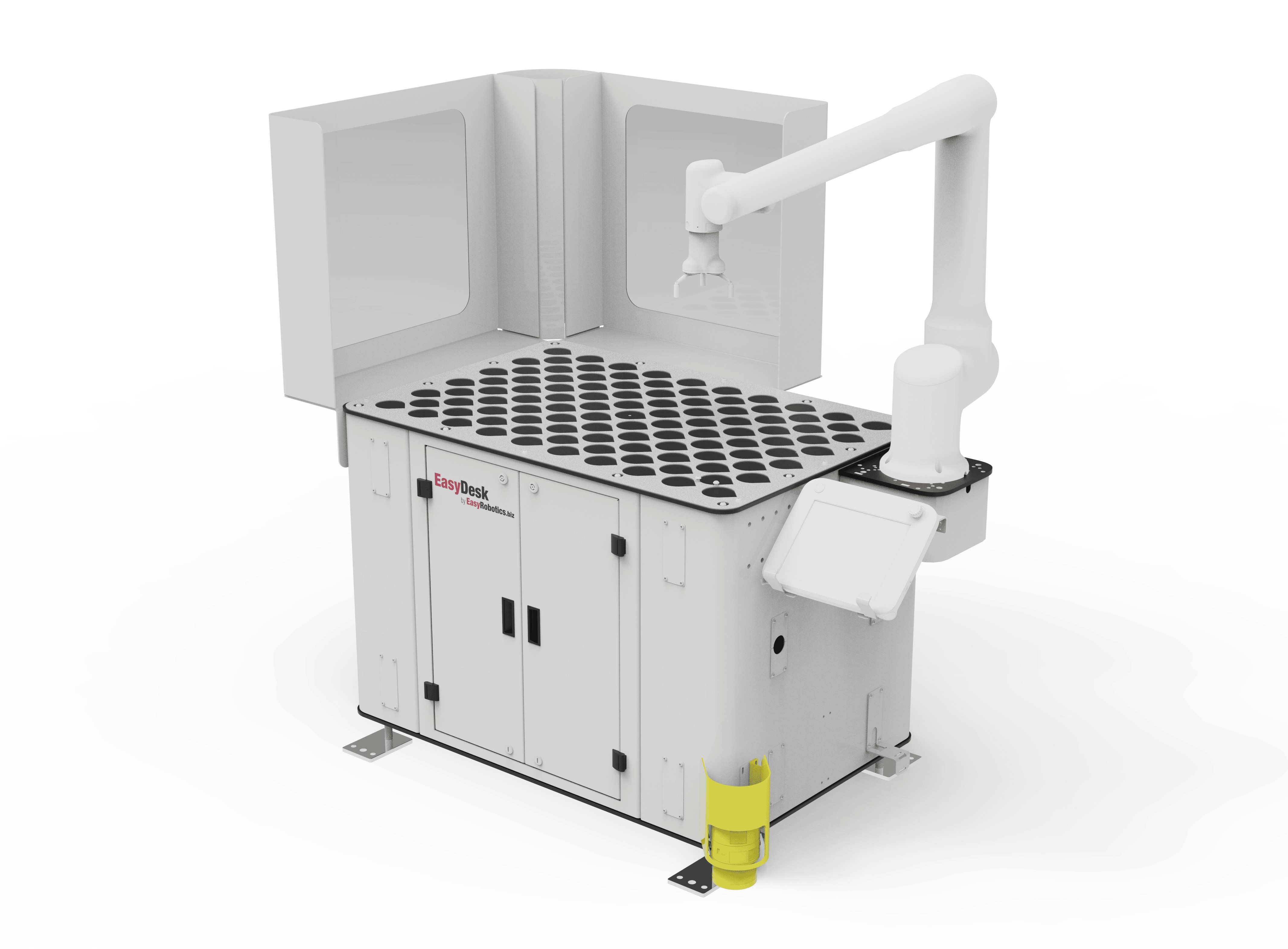

EasyDesk workstation with safety enclosure and transparent viewing panels

Product Overview

ED-1002-SE EasyDesk Safety Enclosure, two walls For all EasyDesk variants. L 1515 × W 990 × H 1169 mm; 135 kg. Confirm the mounting arrangement for your workstation.
ED-1003-SE EasyDesk Safety Enclosure, two walls with extension For all EasyDesk variants. L 1302 × W 990 × H 1169 mm; 85 kg. Confirm the mounting arrangement for your workstation.
SC-1000 Yellow Scanner cover Cover for laser scanner
RAL-XXXX Custom RAL code RAL Code XXXXX

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Compare the enclosure variants, workstation fit, viewing panels and supply scope before requesting a quote.

EasyDesk Safety Enclosure is a modular enclosure for EasyDesk robot workstations. It uses a steel frame, transparent polycarbonate panels and an open roof to define the workspace while keeping the process visible.

ED-1002-SE is the two-wall enclosure. ED-1003-SE is the two-wall enclosure with extension. Select the reference for your workstation and confirm the mounting arrangement in the quotation.

ED-1002-SE is listed for all EasyDesk variants. ED-1003-SE is for all EasyDesk variants. Confirm the exact EasyDesk model, robot position, tooling and access clearances before ordering.

ED-1002-SE measures L 1515 × W 990 × H 1169 mm and weighs 135 kg. ED-1003-SE measures L 1302 × W 990 × H 1169 mm and weighs 85 kg. These are enclosure specifications; confirm the complete workstation dimensions and installed weight in the project drawing.

Both configurations have a steel frame, transparent polycarbonate panels, 550 x 500 mm transparent windows, an open roof and a grey standard finish. A custom RAL colour can be requested.

Lockable access doors, safety interlocks and optional light curtains are described as configuration features. Their availability, specifications and inclusion must be confirmed in the quotation; they should not be assumed to be supplied with every enclosure.

The transparent-panel specification alone does not establish welding or laser protection. Describe the welding process or laser equipment so the required panel ratings, guarding, extraction and access controls can be confirmed for the complete installation.

EasyDesk Safety Enclosure is an open-roof enclosure mounted to an EasyDesk workstation. EasyDesk Enclosure is a separate full-view upper-housing configuration with front-door access. EasyEnclosure is a larger enclosure measuring L 2400 × W 3800 × H 2383 mm for a separate robot workspace.

Confirm the supply scope in the quotation. Images may show a complete workstation; the EasyDesk base, robot, tooling, controller and process equipment are included only when stated in the agreed package.

Send the EasyDesk model, preferred enclosure reference, robot make and model, application, part dimensions and loading method. Include your required access options, installation location and a layout or photos of the existing workstation.
