ProFeeder Flex

ProFeeder Flex Mobile Robot Cell for Machine Tending

Move automation between production stations with ProFeeder Flex, a mobile cobot stand for CNC machine tending, parts handling and assembly. Heavy-duty wheels support relocation, while two anchored floor docks provide a defined operating position.

Choose FlexBase, FlexOne with one table, or FlexThree with three tables. Each includes controller storage and a teach-pendant bracket. Share your robot model, workpiece dimensions, weight and application to request a suitable configuration and project quote.

contact Us Get A Quote

ProFeeder Flex
3D View

Downloads For ProFeeder Flex

options
Factsheet

ProFeeder Flex – Highly Maneuverable Mobile Cobot Stand

ProFeeder Flex is a mobile robot platform for CNC machine tending automation and parts handling. Its wheeled chassis lets you relocate the robot between prepared workstations, while the floor docking system secures the operating position.

Controller storage and accessible controls:
The enclosed pedestal provides a 550 × 300 × 550 mm controller compartment, protected cable routing and an adjustable teach-pendant holder. Check controller fit and cable connections for the chosen robot.

Configured for your robot and process:
Select the adapter plate for the exact robot brand and model. Confirm reach, payload, mounting loads, gripper and machine interface as part of the complete cell configuration.

mobile robot cell

Mobile cobot stand benefits

Highly Maneuverable

Heavy-duty wheels make the platform easy to relocate within the factory. Two anchored floor docks establish the working position; dock and level the platform before robot operation.

State-of-the-art Design

The central pedestal provides a 0° robot mounting position and protected cable routes. Select a robot-specific adapter plate and verify the proposed robot and docking loads.

Innovative & Practical

An adjustable teach-pendant holder keeps controls accessible. The 550 × 300 × 550 mm controller compartment provides dedicated storage within the mobile platform.

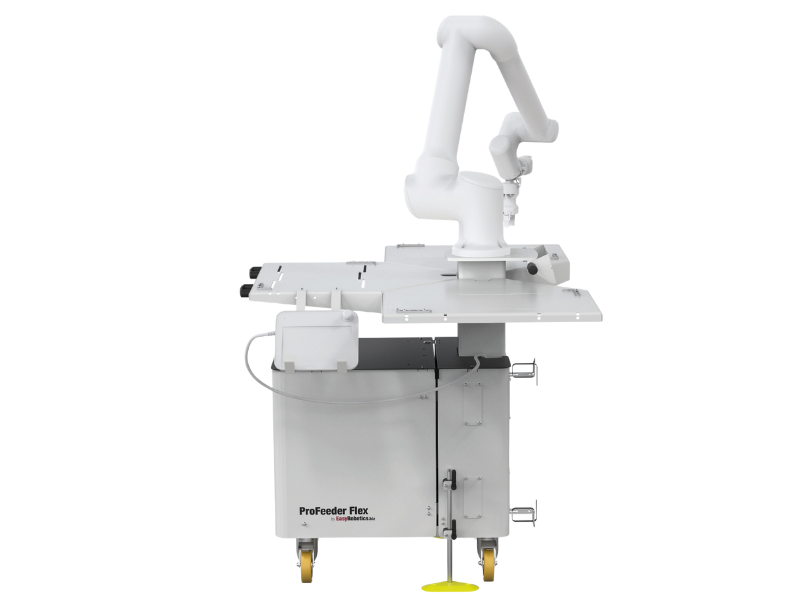

cobot workstation

ProFeeder Flex Applications

  • Machine – Tending
  • Cutting
  • Finishing and Polishing
  • Deburring
  • Grinding
  • Welding
  • Assembly

Use ProFeeder Flex as the mobile platform for the applications listed above. The robot, end-of-arm tooling, fixtures and controls determine what the complete cell can do. For CNC projects, review EasyDoor automatic door operation as part of the machine interface.

Compare EasyWork mobile robot workstation when selecting a platform for your production layout. Share the application, available floor space and robot model so the team can recommend a suitable configuration.

ProFeeder Flex – Equipment Options

Choose the platform around the number of work surfaces needed for your process. FlexOne has one 650 × 430 mm table; FlexThree has three. The maximum load is 110 kg per table. FlexBase provides the mobile stand without a table.

Available Models:

All three variants include wheels, two floor docks, a teach-pendant bracket and controller storage:

  • FlexBase — Stand with integrated controller compartment and pedestal
  • FlexOne — Stand with a single table for compact setups
  • FlexThree — Stand with three tables for expanded operations

Add extra docking plates for another workstation, front/rear docking support where required, or a scanner cover. Order the correct robot adapter plate with the platform. Request a quote covering the selected model, accessories and integration scope.

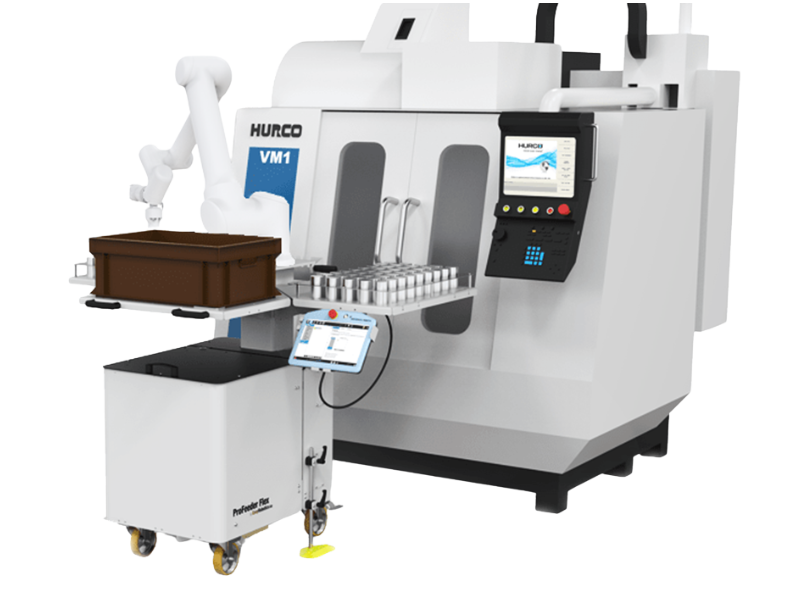

machine tending automation

ProFeeder Flex video

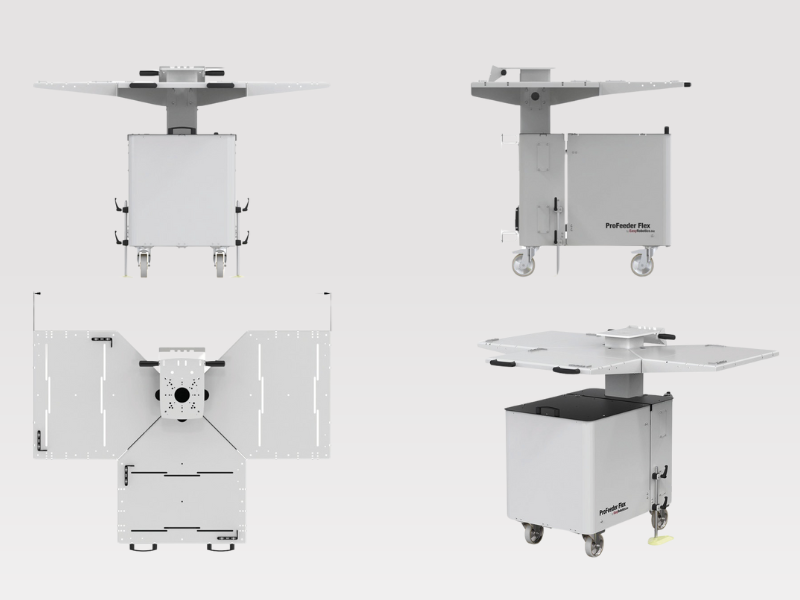

Drawing

mobile machine loading cell

Product Overview

PFF-1002-00 ProFeeder FlexBase H: 1100 mm, W: 680, L: 1000, Wt: 100 kg, Floor docking, T-Pad bracket, Compartment for controller
PFF-1002-01 ProFeeder FlexOne H: 1100 mm, W: 680, L: 1000, Wt: 115 kg, Floor docking, T-Pad bracket, Compartment for controller, One table
PFF-1002-03 ProFeeder FlexThree H: 1110 mm, W: 1522, L: 1096, Wt: 150 kg, Floor docking, T-Pad bracket, Compartment for controller, Three tables
PFF-1002-06 Table for ProFeeder Flex Workspace 650 × 430 mm, maximum load per table 110 kg
PFF-1002-04 Extra floor docking plate (2 pcs) Two extra docking plates for ProFeeder Flex
PFF-1002-05 Extra Front/Rear dock for larger robots Extra Front/Rear dock when mounting larger robots
SC-1001 Yellow Scanner cover Cover for laser scanner
RAL-XXXX Custom RAL code RAL Code XXXXX

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Compare model choices, docking, robot compatibility and integration requirements before requesting your ProFeeder Flex configuration.

ProFeeder Flex is a mobile cobot stand for CNC machine tending, parts handling and other production tasks. It combines a wheeled chassis, floor docking, robot mounting, controller storage and a teach-pendant bracket.

It allows a robot platform to move between prepared workstations, helping manufacturers reuse automation across tasks. The effect on output depends on the robot program, process cycle time, changeover and the complete cell setup.

Metal machining, automotive, electronics and assembly operations can use a mobile robot platform where production tasks change. Suitability depends on the workpiece, process equipment, robot and installation requirements.

Typical applications include CNC machine tending, parts handling, cutting, finishing and polishing, deburring, grinding, welding and assembly. Each needs appropriate tooling, fixtures, programming and cell integration.

Heavy-duty wheels support relocation within the factory. Two floor docks are supplied to define the operating position. Dock and level the platform before robot operation; additional docking plates can support another prepared workstation.

The brochure lists Universal Robots, Doosan, Hanwha, Kassow, FANUC and Techman. Select an adapter plate for the exact robot model and confirm payload, reach, mounting loads, controller fit and the docking arrangement.

FlexBase is the mobile stand without a table. FlexOne includes one 650 × 430 mm table; FlexThree includes three. The maximum load is 110 kg per table. All three include floor docking, a teach-pendant bracket and controller storage.

Select the robot-specific adapter, gripper, fixtures, controller connections and any machine interface. The platform includes controller space and cable routing, but the complete robot cell still needs application setup and validation.

A robot installed on the platform can take over repetitive parts handling or machine loading. Operators remain responsible for tasks such as replenishment, changeover and supervision according to the application.

ProFeeder Flex provides a mobile platform that can be reused as production requirements change. To assess the investment, share your robot model, process, workpiece dimensions and weight, batch sizes and cycle times when requesting a quote.
