ProFeeder Mover

ProFeeder Mover for CNC Machine Tending

ProFeeder Mover combines a floor-anchored robot cell with a mobile parts cart for CNC loading and unloading. The robot and controller stay on the base while the cart brings blanks to the working position and carries finished parts away.

An 880 × 750 mm work area and pneumatic cart locking support repeatable parts presentation. PF-1000-M includes one Mover with a traytop. Share your CNC machine, robot model, part dimensions and batch size to request a configuration and project quote.

contact Us Get A Quote

ProFeeder Mover
3D View

Downloads For ProFeeder Mover

options
Factsheet

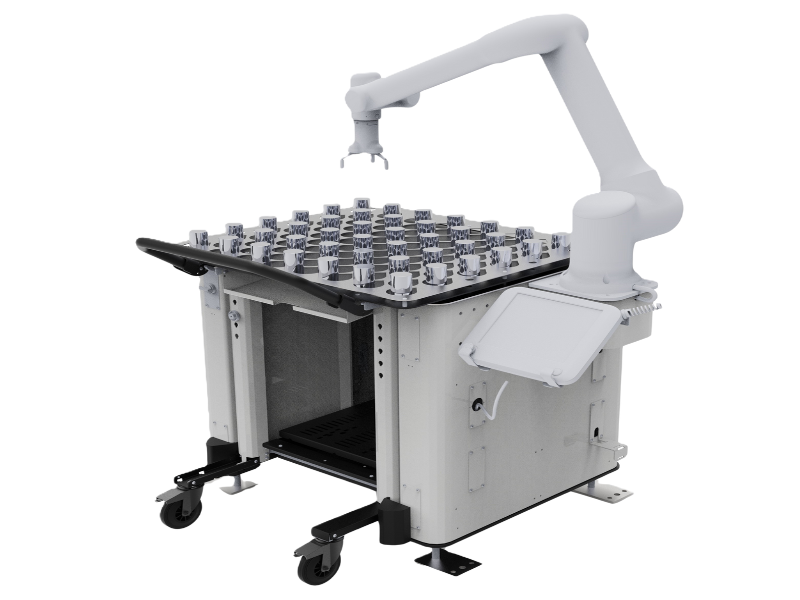

CNC Robot Cell with a Mobile Parts Cart

ProFeeder Mover supports CNC machine tending automation by combining an anchored robot platform with a removable parts cart. The Mover transports blanks and finished parts between production areas and the robot cell.

At the working position, a pneumatic cylinder lock secures the cart before robot handling begins. The 880 × 750 mm work area can be configured with the standard teardrop traytop, a square-pattern top or an aluminium-profile surface for fixtures.

The base provides 0° or 45° robot mounting, a teach-pendant bracket and a 650 × 420 × 550 mm controller compartment. Select the adapter plate for the exact robot model and confirm reach, payload, mounting loads and controller fit.

mobile parts cart

ProFeeder Mover features

HIGHLY MOBILE

The wheeled Mover carries parts to and from the anchored cell. Once positioned, pneumatic locking establishes the cart position for robot picking and placing.

INCREASED EFFICIENCY

An additional Mover can be prepared away from the working position to support batch changeovers. The time saved depends on part layout, machining time, replenishment and the complete cell setup.

INNOVATIVE & FLEXIBLE

Choose 0° or 45° robot mounting and the correct robot adapter. Match the traytop or fixture surface to the workpiece dimensions, gripper access and production batch.

machine tending automation

Applications

Industries:

  • Metal and Machining
  • Automotive
  • Pharma
  • Electronics
  • Assembly

The system can support CNC machine tending, pick-and-place, assembly and inspection when configured with a suitable robot, tooling and controls. For CNC installations, review EasyDoor automatic door operation as part of the machine interface.

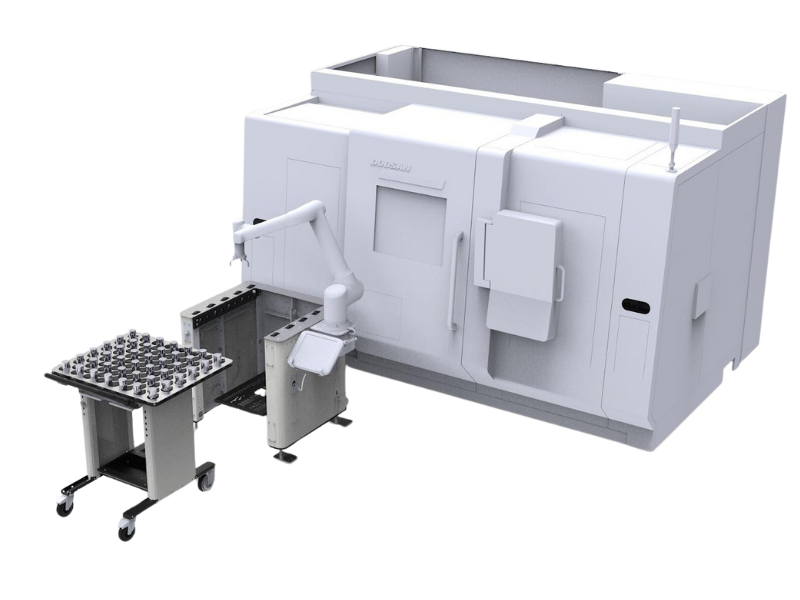

Parts Transport and Batch Changeover

Prepare parts for the next batch: The standard system includes one Mover with a DT-1000-03 traytop. An extra cart can support staged replenishment and removal of finished parts. Part count depends on workpiece size, spacing and gripper clearance.

Select the platform for your workflow: ProFeeder Mover keeps the robot on an anchored base during production. For a wheeled stand that relocates with the robot, compare ProFeeder Flex. Include the robot, workpieces, available floor space and changeover needs in your quotation request.

robot cell mobile cart

ProFeeder Mover video

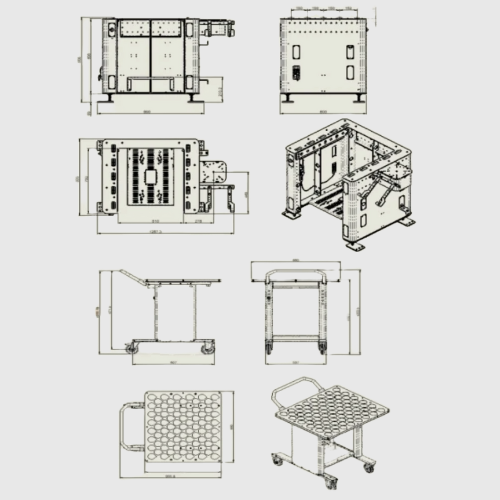

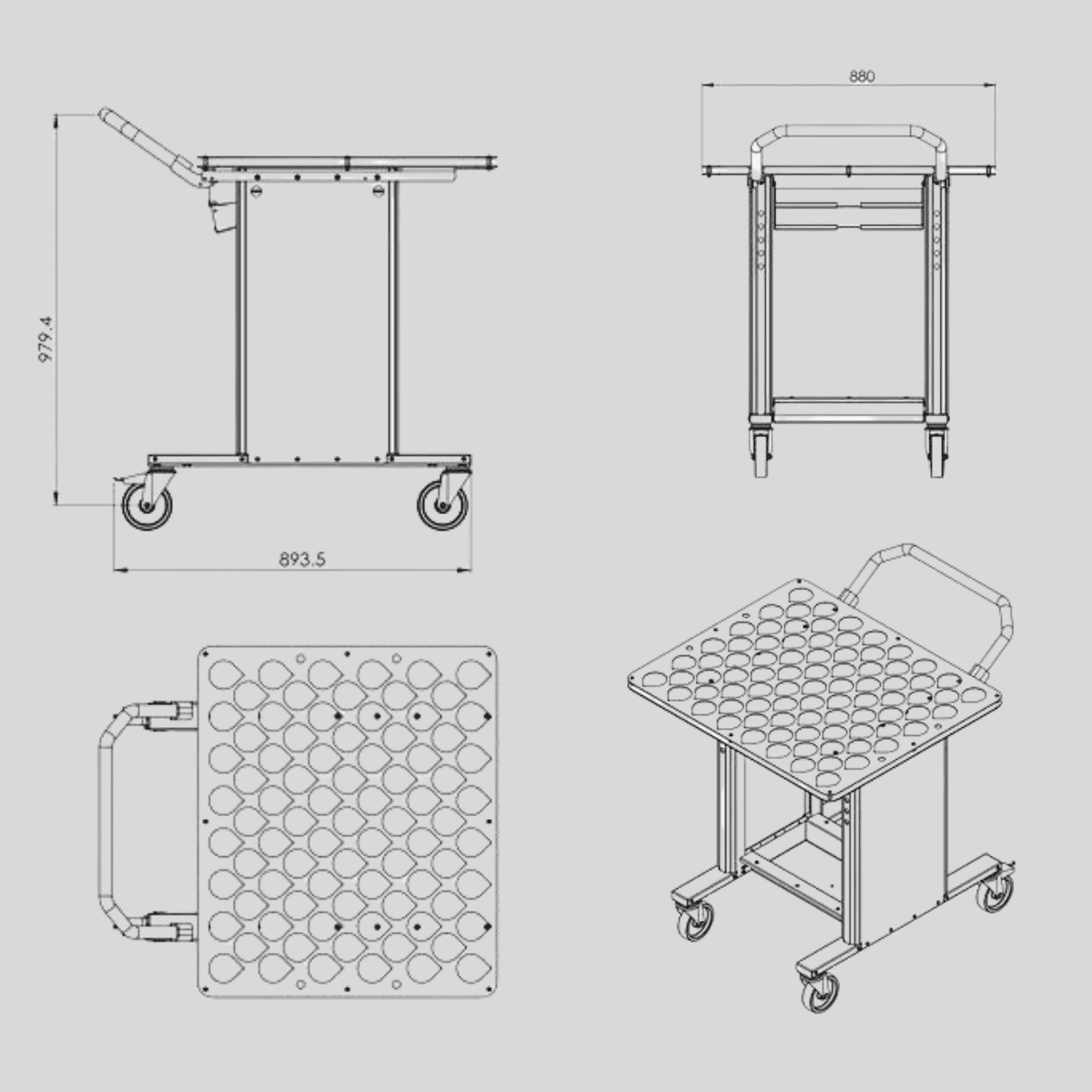

Drawing

flexible automation cell

Product Overview

PF-1000-M ProFeeder Mover H: 932 mm, W: 800mm, L: 1165mm, Wt: 205 kg, T-Pad bracket, Bracket for controller, Delivered with 1 Mover with traytop (DT-1000-03), Airlock of Mover
PFM-1001 / M-102 Mover for ProFeeder Mover (PF-1000-M)
PFF-1002-05 Extra Front/Rear dock for larger robots Extra Front/Rear dock when mounting larger robots
ER-Angle-30 Angle for ProFeeder 30 degrees 30 degrees angle
ER-Angle-45 Angle for ProFeeder 45 degrees 45 degrees angle
ER-Handle Handle for ProFeeder series Handle to push/pull the ProFeeder
SC-1000 Yellow Scanner cover Cover for laser scanner
RAL-XXXX Custom RAL code RAL Code XXXXX

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Review the robot cell, mobile cart, tray configuration and installation requirements to select the right ProFeeder Mover setup.

ProFeeder Mover is a robot cell with a removable mobile parts cart for CNC machine tending and parts handling. The robot and controller remain on the floor-anchored base; the cart transports workpieces to and from the operating position.

A removable cart lets operators prepare or remove batches away from the robot work position. An additional Mover can support staged changeovers. The effect on output depends on machining time, handling time and replenishment.

Typical applications include CNC machine tending, pick-and-place, assembly and inspection. The selected robot, tooling, fixtures and controls determine the complete cell capability.

Metal machining, automotive, electronics and assembly operations can use the system for repeated parts handling. Suitability depends on the workpiece, process, robot and installation requirements.

Select a robot-specific adapter and confirm the exact robot model, reach, payload, base loads and controller fit. The base supports 0° or 45° mounting; selected compact industrial robots require project-specific engineering checks.

The robot can automate repeated machine loading and unloading from the docked cart. Operators still replenish workpieces, exchange carts and manage changeovers according to the production process.

Yes. Its 880 × 750 mm work area presents parts to a robot, and pneumatic locking secures the Mover at the working position. CNC integration also requires a suitable gripper, fixtures, machine interface and robot program.

It can suit small and medium batches when the tray layout and cart-exchange process fit the workpieces. Compare usable parts per cart, cycle time, changeover effort and tooling requirements before selecting the setup.

Check floor space and anchoring, robot reach, adapter plate, controller fit, gripper, work surface and CNC interface. The pneumatic lock requires a suitable dry-air supply, specified at a maximum of 8 bar. Validate the complete cell before operation.

The system combines organised parts presentation with mobile batch transport. Evaluate the investment using batch quantities, machining and handling times, staffing and integration costs. Request a project quote using your robot model and workpiece details.
