ProFeeder Alu

Robot Cell for CNC Machine Tending Automation - ProFeeder Alu

ProFeeder ALU is a robot work cell for CNC machine tending, assembly, polishing and finishing. Its 40 mm aluminium-profile tabletop provides a 900 × 800 mm work area for clamps, fixtures and process tooling, with manual part changes for small-series production.

Choose the robot mounting position and configure the work surface around your process. Share your robot model, workpiece dimensions and application to request the adapter plate, integration options and project quote.

contact Us Get A Quote

ProFeeder Alu
3D View

Downloads for ProFeeder ALU

options
Factsheet

ProFeeder Alu (Former “Table”) – Compact Robot Work Cell

ProFeeder ALU, formerly known as Table, combines an aluminium-profile work surface with a powder-coated steel robot base. It supports fixtures and tooling for CNC machine tending automation, assembly and finishing applications.

PF-1000-A measures L 1165 × W 800 × H 932 mm and weighs 205 kg. The cell includes a teach-pendant bracket and a 650 × 420 × 550 mm controller compartment. Select the exact robot adapter and secure the base to the floor before operation.

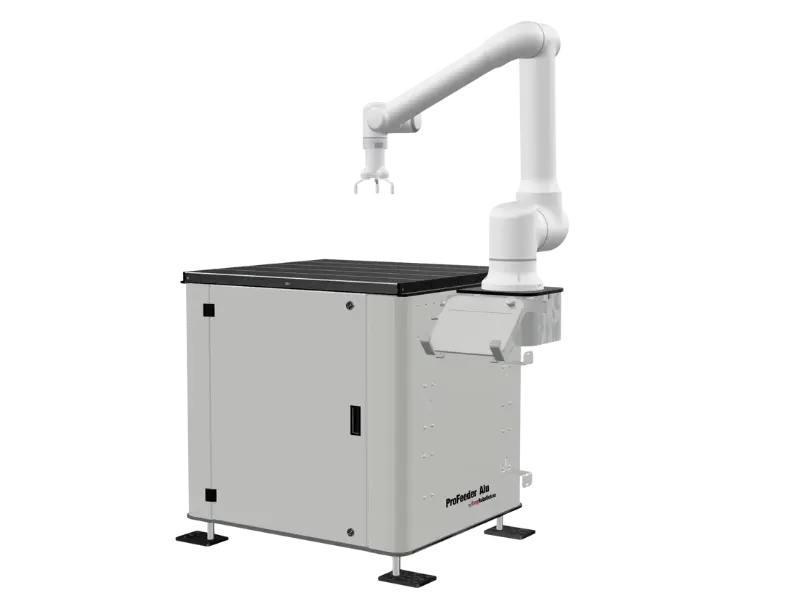

robot work cell

ProFeeder Alu Features – Compact Robot Work Cell

Flexible Cobot Mounting on Three Sides

Position the robot console on one of three sides and choose 0° or 45° mounting. Match the adapter plate and mounting position to the robot model, reach and machine access.

Aluminum Profile Universal Tabletop

The 40 mm aluminium profiles provide a 900 × 800 mm work area for clamping systems, custom fixtures and tooling. Check the fixture interface and loads for the selected process.

Controller Storage and Integration

The base provides controller storage, cable routing and a teach-pendant bracket. Installation also requires the robot, adapter, gripper or process tool, controls and application program.

compact cobot workstation

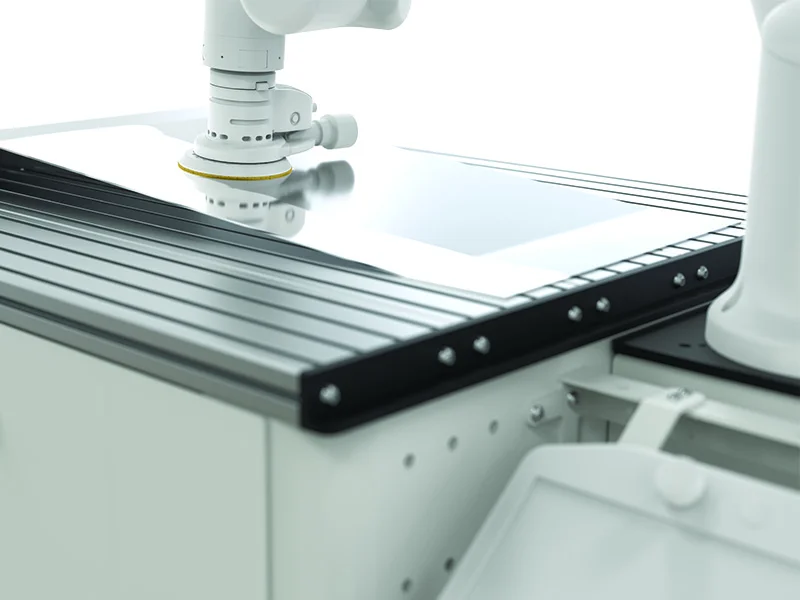

Configure the Work Surface for Your Process

Use the aluminium profiles to mount compatible clamps, measuring equipment and process tooling. The work surface can be rearranged for a new part or operation while the robot base remains floor-secured.

ALU is suited to fixture-based processes with manual part changes. If your application needs organised component positions on a removable tray, compare ProFeeder Tray before choosing the platform.

Applications:

  • Cutting
  • Finishing and Polishing
  • Deburring
  • Grinding
  • Assembly automation systems

Final capability depends on the robot, tooling, fixtures and machine interface. For non-standard mounting, work surfaces or process requirements, discuss customized automation solutions with EasyRobotics.

ProFeeder Alu Advantages – Compact Robot Workstation

  • Flexible robot mounting: Select a console position on three sides of the cell and a 0° or 45° mounting orientation to suit robot reach and access.
  • Application-specific setup: Configure the adapter plate, robot, gripper or process tool, fixtures and controls for the intended task.
  • Aluminium-profile tabletop: A 900 × 800 mm work area with 40 mm profiles supports compatible clamping systems, fixtures and tooling.
  • Controller and cable storage: A 650 × 420 × 550 mm compartment and cable routing openings help organise the robot controller and connections.
  • Compact dimensions: The cell measures L 1165 × W 800 × H 932 mm and weighs 205 kg. Allow space for the robot working envelope, machine access and operator tasks.
  • Steel base with mobility options: Optional wheels allow relocation between jobs. The base must be levelled and secured at the working position before robot operation.

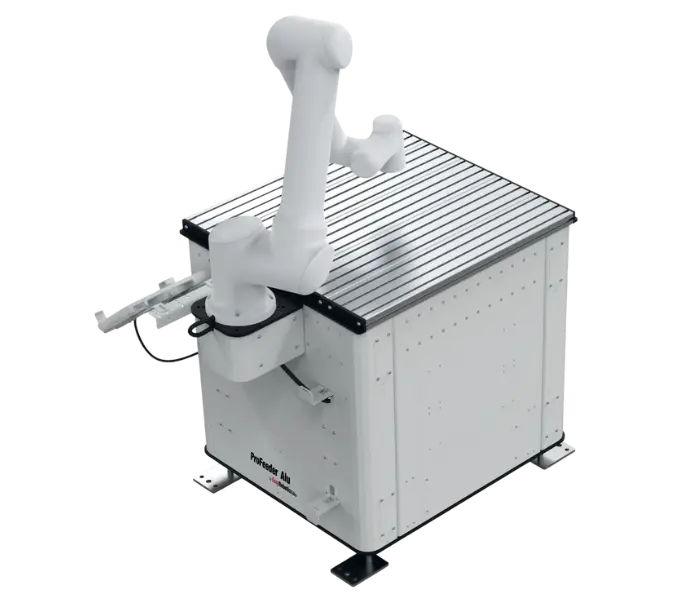

Robot work cell - ProFeeder Alu

ProFeeder ALU video

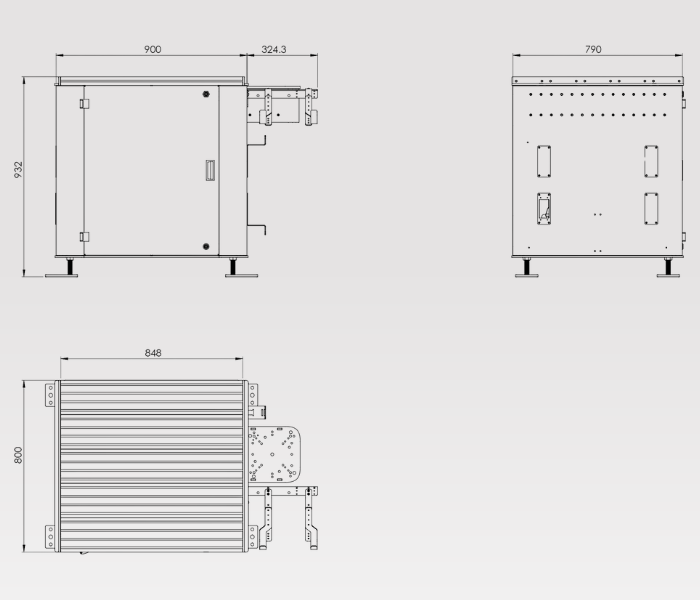

Drawing

machine tending cell

Product Order Overview

PF-1000-A ProFeeder Alu H: 932 mm, W: 800mm, L: 1165mm, Wt: 205 kg, T-Pad bracket, Bracket for controller, Alu-profile 40 tabletop
GD-Wheels Wheels for ProFeeder Tray / Alu Caster wheel with foot locker
PFF-1002-05 Extra Front/Rear dock for larger robots Extra Front/Rear dock when mounting larger robots
ER-Angle-30 Angle and ProFeeder 30 degrees 30 degrees angle
ER-Angle-45 Angle for ProFeeder 45 degrees 45 degrees angle
ER-Handle Handle for ProFeeder series Handle to push/pull the ProFeeder
SC-1000 Yellow Scanner cover Cover for laser scanner
RAL-XXXX Custom RAL code RAL Code XXXXX

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Review the tabletop, robot mounting, installation and configuration requirements before selecting your ProFeeder ALU setup.

Robot-specific adapter plates are available for a range of cobots. Share the exact brand and model so the mounting interface, payload, reach, base loads and controller fit can be checked. The adapter plate is a separate order item unless included in the quotation.

Yes. Its aluminium-profile tabletop can hold fixtures and tooling for small-series work with manual part changes. Suitability depends on the process, workpiece layout, cycle time and changeover requirements.

The base includes controller storage and a teach-pendant bracket. Installation requires levelling, floor anchoring, the correct robot adapter, tooling, controls and an application program. The complete cell must be checked before production.

The tabletop uses 40 mm aluminium profiles and provides a 900 × 800 mm work area. It supports compatible clamping systems, fixtures, measuring equipment and process tooling; confirm the mounting interface and loads for your setup.

Optional heavy-duty wheels allow relocation between jobs. The cell must be levelled and secured at the working position before robot operation. Confirm the relocation and docking arrangement for the installation.

Typical applications include metal machining, automotive components, electronics and assembly. Material and integration options can be discussed for food or pharmaceutical environments according to the process requirements.

The aluminium profiles can accept a range of clamping systems and custom fixtures. Check the mounting interface, fixture loads, workpiece position and robot access for the tools you intend to use.

The work surface can be configured for repeated operations, while controller storage and cable routing help organise the installation. The effect on productivity depends on the process, tooling, cycle time and manual changeovers.

ProFeeder ALU can form part of an engineered automation installation. ProFeeder Tray provides a removable parts tray as an alternative work surface, and other ProFeeder models offer different storage arrangements. Confirm component compatibility and integration scope for the project.

The cell combines a powder-coated steel base with a 40 mm aluminium-profile tabletop. Evaluate payback using the complete installed cost, production volume, staffing, cycle times and changeovers. Request a configuration and quote for your application.
