EasyDesk ALU – Aluminum Robot Workstation for Cobot Automation

EasyDesk ALU is a cobot workstation for CNC machine tending, assembly, finishing and inspection. Its 40 mm aluminum-profile tabletop provides a configurable surface for clamps, fixtures and process tooling, with a nominal size of 1200 × 800 mm and a tabletop load capacity of up to 300 kg.

Configure the work surface and robot mounting around your process. Share your robot model, fixture layout, workpiece dimensions and production task to request the adapter plate, integration options and project quote.

contact Us Get A Quote

Easydesk Alu
3D View

Downloads for EasyDesk Alu

options
Factsheet

An Aluminum-Profile Workstation for Fixtures and Tooling

EasyDesk ALU combines a steel robot base with a 40 mm aluminum-profile tabletop. The nominal tabletop measures 1200 × 800 mm, with a specified work area of 1148 × 800 mm for arranging fixtures, stops and tooling. It can support CNC machine tending, assembly and finishing applications.

ED-1001-A measures 1550 × 890 × 932 mm and weighs 305 kg. It includes a teach-pendant bracket and a 700 × 500 × 650 mm controller compartment. Select the exact robot adapter, tooling, controls and application program, then level and anchor the workstation before robot operation.

universal robot workstation

EASYDESK TRAY

Choose EasyDesk Tray when your process needs organised part positions on a stainless-steel tray. The pattern, spacing and usable capacity are specified around the parts.

EASYDESK ALU

Choose the aluminum-profile work surface for clamps, fixtures and tooling. Configure the layout within the 1148 × 800 mm work area and check the loads and robot access for the process.

EASYDESK WELDING

For welding fixtures and clamping, compare EasyDesk Welding. Select the tabletop, tooling and protection around the welding process.

EasyDesk Alu – Flexible and Modular Robot Workstation

  • Configurable work surface: Aluminum profiles allow compatible clamps, stops and custom fixtures to be repositioned for a new part or operation.
  • Tabletop and work area: The 40 mm profiles form a nominal 1200 × 800 mm tabletop with a specified 1148 × 800 mm work area. Tabletop load capacity is up to 300 kg.
  • Relocation options: Wheels and floor docking can support moves between jobs. The workstation must be levelled and securely anchored at the operating position.
  • Fixture compatibility: Check the clamp interface, fixture dimensions, workpiece loads and tool access for the selected application.
  • Robot mounting: Select 0° or 45° mounting and reposition the console along three working sides. Verify reach and access for the chosen robot and fixture layout.
  • Controller access: A pull-out controller compartment measuring 700 × 500 × 650 mm helps organise the controller and cable connections.

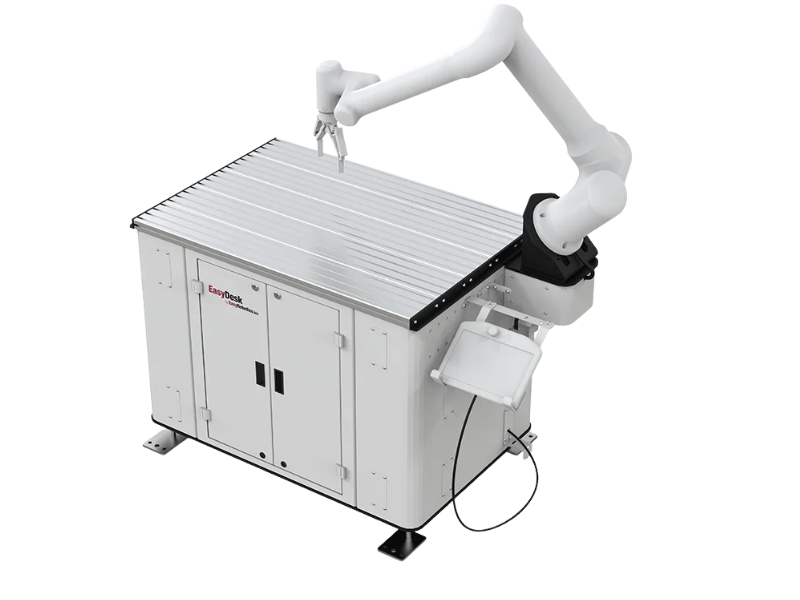

modular cobot platform
CNC machine tending station

Configure EasyDesk ALU for Your Production Task

Use EasyDesk ALU for fixture-based operations that need an adaptable work surface. The profile layout can accommodate compatible clamping and tooling arrangements while the robot base remains secured during operation. Final capability depends on the selected robot, process tools, fixtures and controls.

Applications:

  • Cutting
  • Finishing & Polishing
  • Deburring
  • Grinding
  • Quality Control

Industries:

  • Metal & Machining
  • Plastic & Polymers
  • Automotive
  • Pharma
  • Electronics
  • Chemical

Share the workpiece dimensions, fixture layout, robot model and cycle-time target to discuss a suitable setup. For a non-standard tabletop or mounting arrangement, request customized automation solutions. Material and guarding requirements should be matched to the production environment.

EasyDesk ALU video

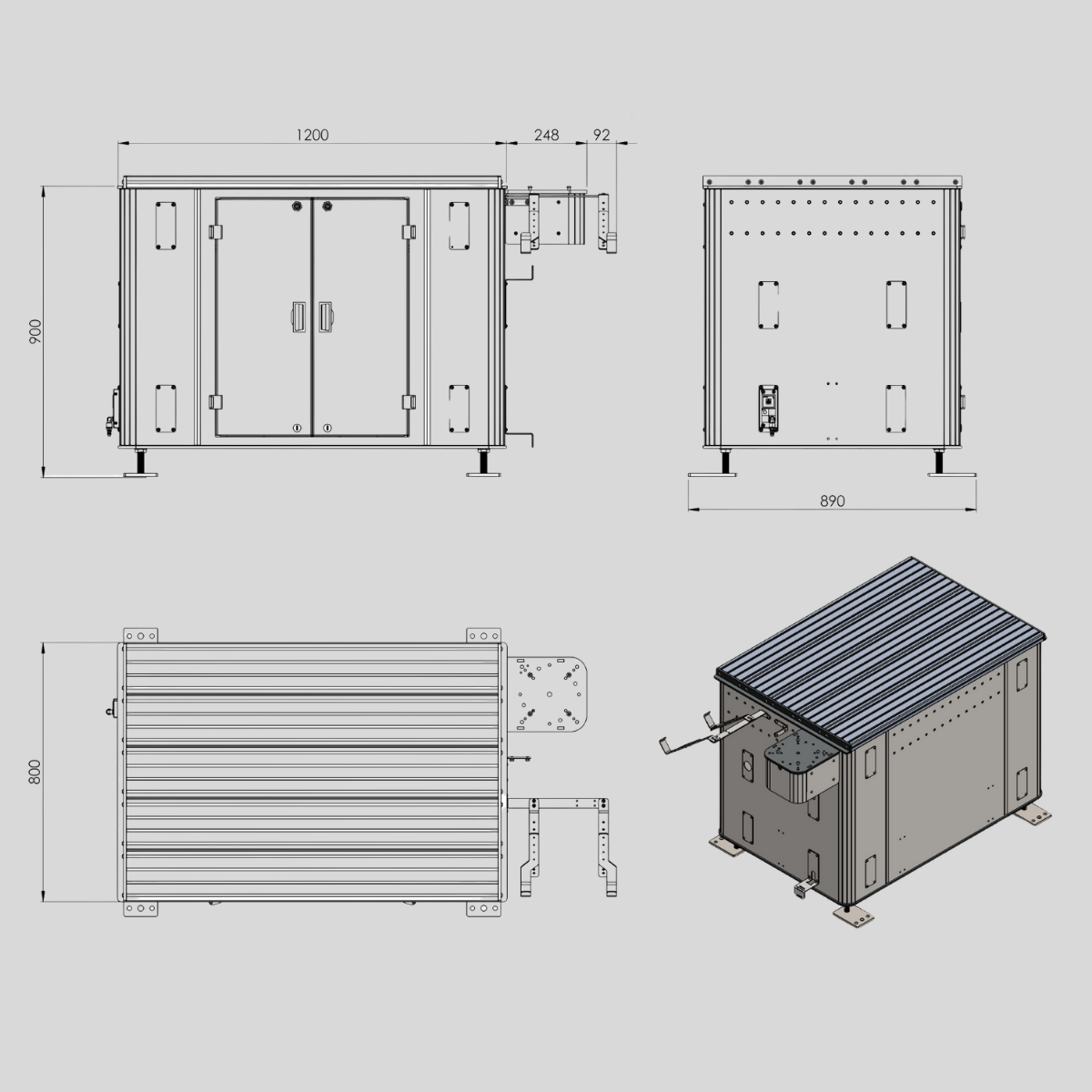

Drawing

EasyDesk Alu

Product Order Overview

ED-1001-A EasyDesk Alu H: 932 mm, W: 1550mm, L: 890mm, Wt: 305 kg, T-Pad bracket, Compartment for controller, 45 degree angle for robot, Alu-profile 40 tabletop
ED-1002-SE EasyDesk Safety Enclosure 2-walls, Fits all the EasyDesk versions Fits all the EasyDesk versions
ED-1003-SE EasyDesk Safety Enclosure 2 walls with extension Fits all the EasyDesk Tray and Alu
ED-1001-EC EasyDesk Enclosure - Compact Enclosed Robot Cell Fits all the EasyDesk versions
LWS-1001 Replacement laser welding safety window Uwex EN 207 full protection; EN 60825 6 ±0,3 for CO2 W x H: 297 x 210
GD-Wheels Wheels for EasyDesk Caster wheel with foot locker
PFF-1002-05 Extra Front/Rear dock for larger robots Extra Front/Rear dock when mounting larger robots
ER-Angle-30 Angle for EasyDesk 30 degrees 30 degrees angle
ER-Angle-45 Angle for EasyDesk 45 degrees 45 degrees angle
ER-Handle Handle for EasyDesk series Handle to push/pull the EasyDesk
SC-1000 Yellow Scanner cover Cover for laser scanner
RAL-XXXX Custom RAL code RAL Code XXXXX

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Review the tabletop, robot mounting, installation and configuration requirements before selecting your EasyDesk ALU setup.

Robot-specific adapter plates are available for a range of collaborative robots. Share the exact brand and model so the mounting interface, payload, reach, base loads and controller fit can be checked. The adapter plate is a separate order item unless included in the quotation.

Yes. The aluminum-profile work surface can hold fixtures and tooling for a robot serving a CNC machine. Integration requires the correct adapter, gripper, machine communication, application program and safeguards for the complete process.

The nominal tabletop measures 1200 × 800 mm. The specified work area is 1148 × 800 mm. Use the work-area dimensions when planning the fixture layout, then check the robot reach and access around the parts.

EasyDesk ALU combines a steel workstation base with a 40 mm aluminum-profile tabletop. ED-1001-A measures 1550 × 890 × 932 mm and weighs 305 kg. It includes a teach-pendant bracket and a 700 × 500 × 650 mm controller compartment.

Optional wheels and floor docking arrangements support relocation between jobs. The workstation must be levelled and securely anchored at the working position before robot operation. Confirm the handling and docking arrangement for the installation.

The published tabletop load capacity is up to 300 kg. Check the fixture and workpiece loads, mounting arrangement and process forces for your application. This tabletop rating is separate from the robot payload and mounting-load checks.

Enclosure options are available for the EasyDesk platform. Select the enclosure, access arrangements and any interlocks or other safeguards for the actual robot, tooling and process. The complete installation requires its own safety assessment and validation.

Yes. The work surface can hold fixtures and process tooling for finishing, polishing, deburring, grinding and quality control. Suitability depends on the robot, tool, workpiece, process forces and required accuracy.

The aluminum profiles accept compatible clamps and custom fixtures. The robot console can be repositioned along three working sides with 0° or 45° mounting. Non-standard adapters, tabletop layouts and mounting arrangements can be discussed for the project.

Provide the robot brand and model, part dimensions or a drawing, fixture and tooling details, production task and cycle-time target. Include any enclosure or relocation requirements so the workstation and integration scope can be quoted for the application.
