Collaborative Robot Palletizer System for Multi-Line Automation - EasyPalletizer Flex

EasyPalletizer Flex is a steel cobot palletizing platform with two pallet positions, integrated pallet sensing and a movable robot pedestal. Reconfigure the pallet guides and pedestal position when pallet formats, robot reach or production layouts change.

Choose a fixed pedestal or lifting column and configure the conveyor interface for your line. Send your box dimensions and weight, pallet format, conveyor height and required boxes per minute to discuss an EasyPalletizer Flex configuration and quote.

contact Us Get A Quote

EasyPalletizer Flex
3D View

Downloads

options
Factsheet

EasyPalletizer Flex – Mobile and Scalable Palletizing for Changing Production Needs

EasyPalletizer Flex supports robotic palletizing automation where pallet formats or production layouts may change. Its steel base combines two pallet positions, adjustable guides and a robot pedestal that can be positioned forward or backward.

The published base footprint is L 1500 × W 1030 mm. PTF-1000 without a pedestal is H 845 mm and weighs 375 kg. Fixed-pedestal and lifting-column versions weigh 430–440 kg. Allow additional floor space for the pallets, conveyor, access and safeguards.

Two pallet sensors, two operator buttons, two configurable multi-colour LED lamps and Modbus communication support the application controls. An 8 × M12 distributor connects the platform devices. Robot programming and conveyor signals are configured for the selected process.

Built in Premium Steel

The load-bearing structure uses industrial steel, with an enclosed area for compatible controller and interface hardware. Plan cable routing and service access around the chosen robot and production layout.

The platform provides:
  • A rigid steel mounting structure for the configured robot.
  • Adjustable pallet guides and pedestal position.
  • An enclosed controller area and planned cable routing.
  • A platform that can be relocated when the line layout changes.

Select the configuration around the real box load, pallet pattern and production rate. For a simpler mechanical platform comparison, view EasyPalletizer Basic.

EasyPalletizer Flex steel platform with two pallet positions

Palletizer Flex Features

Industrial Steel Construction

A 375 kg base provides the mounting structure for the configured palletizing cell. Level and secure the platform to a suitable floor using four M14 anchors before production.

Movable Pedestal and Pallet Guides

Reposition the pedestal forward or backward and adjust the pallet guides to suit robot reach, conveyor position and pallet size. Select a fixed pedestal or lifting column for the required vertical reach.

Pallet Sensing and Modbus

Two pallet sensors, two operator buttons and two configurable LED lamps support the operating sequence. Modbus communication and an 8 × M12 distributor connect the platform devices to compatible application controls.

EasyPalletizer Flex adjustable base and movable robot pedestal

Robust Steel Yet Easy Mobility

The steel platform can be moved with a suitable pallet lifter when the production layout changes. Disconnect and secure the installed equipment for transport, then level and anchor the platform with four M14 bolts at its new operating position.

Flexible Production Line Reconfiguration

Reusing the platform across production lines requires the robot, pallet guides, conveyor interface and operating sequence to be checked for each layout. Confirm reach, cable routing and safeguards before restarting production.

Adjustable Base Design

Adjustable base geometry and foldable pallet arms help accommodate different pallet formats. The interchangeable top cover allows the robot pedestal to move forward or backward to match the conveyor and pallet positions.

For non-standard pallets, robot interfaces or conveyor layouts, discuss customized automation solutions. Provide a layout and sample box details so the proposed configuration can be reviewed.

Flexible and Safe Operator & Pedestal Configuration

The teach pendant mount can move forward to provide an operator position outside the robot work area. A light-curtain or scanner arrangement can be integrated where required by the complete cell design; the holder alone is not a safety system.

Choose PTF-1001 with an 865 mm fixed pedestal, PTF-1002 with a 1200 mm fixed pedestal, or PTF-1003 with an 876–1776 mm lifting-column range and 900 mm stroke. Maximum pallet stack height depends on the robot, gripper, boxes and layout.

Pre-Assembled for Commissioning

EasyPalletizer Flex is supplied approximately 90% pre-assembled. Installation still includes the robot-specific adapter, robot, gripper, conveyor interfaces, application programming and commissioning of the complete cell.

Configure the Complete Installation

Specify the exact robot model and order its adapter plate separately unless included in the quotation. Confirm the selected accessories, controls and delivery scope. For another platform with fixed-pedestal and lifting-column options, compare EasyPalletizer Pro.

EasyPalletizer Flex robot and operator configuration

Robotic Palletizing Video

Drawing

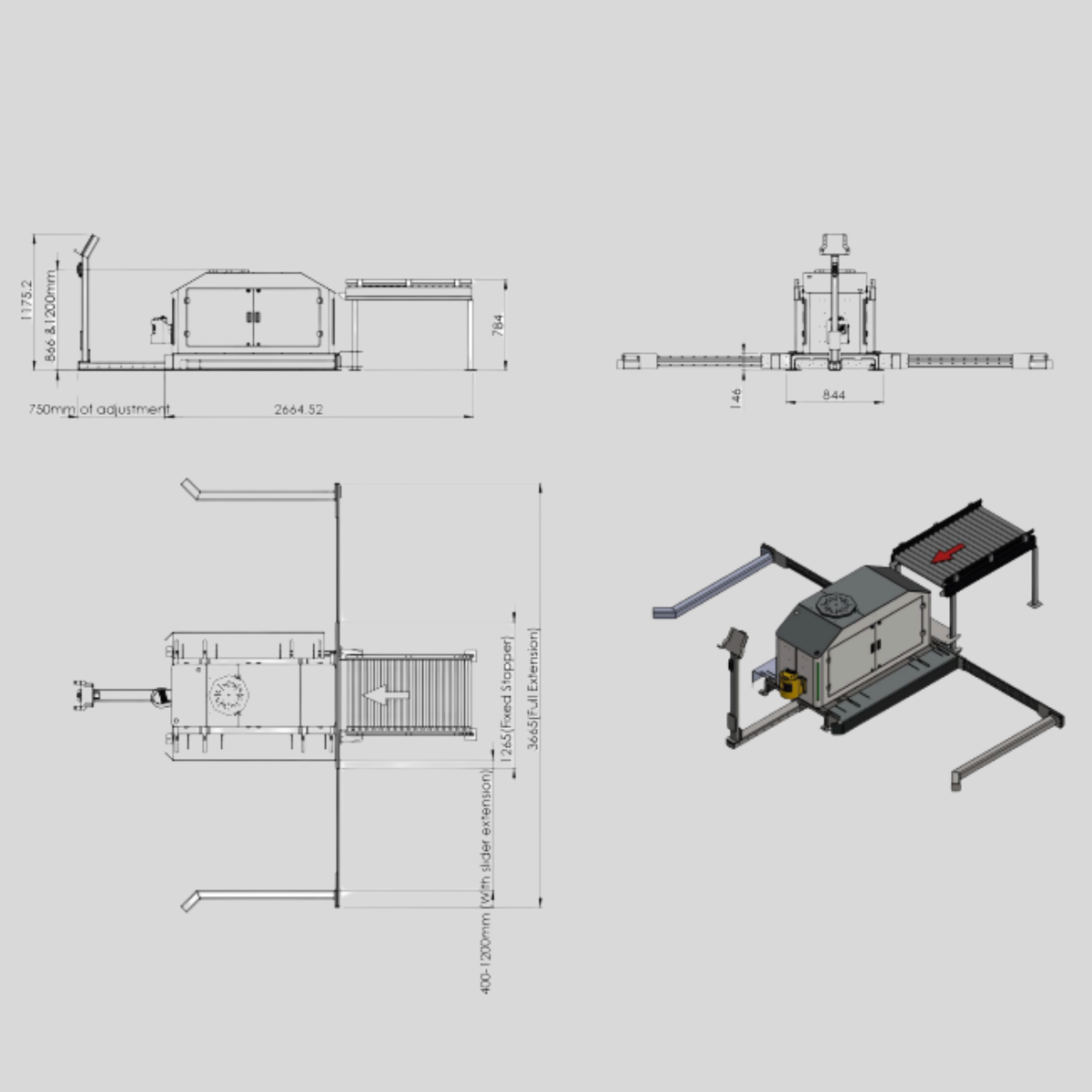

EasyPalletizer Flex platform dimensions and mounting drawing

Product Overview

PTF-1000 EasyPalletizer Flex Base Without Pedestal L: 1500mm W: 1030mm H: 845mm weight 375kg Without Pedestal, For 2 pallets with two adjustable Pallet Grid, 2 sensors, 2 configurable LED-lights, 1 cardboard holder, Modbus TCP
PTF-1001 EasyPalletizer Flex with fixed pedestal 865 mm L: 1500mm W: 1030mm H: 865mm weight 430kg For 2 pallets with two adjustable Pallet Grid, 2 sensors, 2 configurable LED-lights, 1 cardboard holder, Modbus TCP
PTF-1002 EasyPalletizer Flex with fixed pedestal 1200mm L: 1500mm W: 1030mm H: 1200mm weight 440kg For 2 pallets with two adjustable Pallet Grid, 2 sensors, 2 configurable LED-lights, 1 cardboard holder, Modbus TCP
PTF-1003 EasyPalletizer Flex with Lifting column 876-1776mm L: 1500mm W: 1030mm H: 876–1776mm weight 430kg For 2 pallets with two adjustable Pallet Grid, 2 sensors, 2 configurable LED-lights, 1 cardboard holder, Modbus TCP. Lifting column with 900 mm stroke and Modbus TCP/IP; robot software support confirmed for the configuration
PTP-1004 Cardboard holder For interlayer paper or cardboard
PTC-Dock EasyConveyor Docking For EasyDocking of Conveyor
PTC-1000 EasyConveyor Width 420 mm Length 1020 mm L: 1020 mm, W: 420 mm, working height 900 mm adjustable ±50 mm, roller pitch 40 mm, one 720 mm zone with one 24V motor, one photocell, fixed side guide, DriveContro20 control board
PTC-1001 EasyConveyor Width 620 mm Length 1020 mm L: 1020 mm, W: 620 mm, working height 900 mm adjustable ±50 mm, roller pitch 60 mm, one 720 mm zone with one 24V motor, one photocell, fixed side guide, DriveContro20 control board
SC-1002 Safety Light Curtain Holder Safety Light Curtain Holder comes in a set of 2 pcs.
SC-1001 Yellow Scanner cover Cover for laser scanner
RAL-XXXX Custom RAL code XXXXX

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Compare EasyPalletizer Flex configurations, pallet formats, interfaces and installation requirements before requesting a quote.

EasyPalletizer Flex is a steel robotic palletizing platform with two pallet positions, adjustable pallet guides and a movable robot pedestal. It combines pallet sensing, operator buttons, status lights and Modbus communication, with fixed-pedestal and lifting-column configurations for different production layouts.

Suitable cobots and selected industrial robots can be integrated after review of mounting loads, reach, payload, dynamics and the intended application. Provide the exact robot model and select its adapter plate. The plate is ordered separately unless included in the quotation; custom interfaces can be discussed when needed.

Published formats include GMA 1219 × 1016 mm, EUR1 1200 × 800 mm, EUR3 1200 × 1000 mm, GLOB 1067 × 1067 mm, APAC 1100 × 1100 mm and AUS 1165 × 1165 mm. Confirm the guide positions, robot reach, stacking pattern and access space for the selected pallet.

PTF-1000 is the base without a pedestal. PTF-1001 has a fixed 865 mm pedestal, PTF-1002 has a fixed 1200 mm pedestal and PTF-1003 has an 876–1776 mm lifting-column range with 900 mm stroke. The column range is not a guaranteed pallet stack height; check robot reach and the complete layout.

The platform can be relocated with a suitable pallet lifter during production-line changes. It must be levelled and anchored using four M14 bolts before operation. The robot positions, pallet guides, conveyor signals and safeguards must be checked and recommissioned for the new layout.

All four configurations have a published base footprint of L 1500 × W 1030 mm. PTF-1000 is H 845 mm and weighs 375 kg; PTF-1001 is H 865 mm and weighs 430 kg; PTF-1002 is H 1200 mm and weighs 440 kg; PTF-1003 has an 876–1776 mm lifting-column range and weighs 430 kg. Include pallets, conveyors, access space and safeguards when planning the complete cell.

The published platform configuration includes two pallet sensors, two operator buttons, two configurable multi-colour LED lamps, an 8 × M12 pre-wired distributor and Modbus communication. Their functions are mapped to the selected robot and operating sequence. These devices do not replace the complete cell safety system.

The page lists PTP-1004 cardboard holder, PTC-Dock conveyor docking, PTC-1000 and PTC-1001 EasyConveyor units, SC-1002 light-curtain holders, SC-1001 scanner cover and custom RAL colour. The conveyors are 1020 mm long and 420 or 620 mm wide, with a working height of 900 mm adjustable ±50 mm. Confirm accessory inclusion, sensors and any safety-device package in the quotation.

The platform is approximately 90% factory pre-assembled. Installation includes levelling and four M14 floor anchors, the approved robot and adapter, gripper, conveyor interface, application programming and required safeguards. Commission the complete cell and confirm lifting-column control and software support for the selected robot.

Send box dimensions and weight, pallet format, target stack height, conveyor height and required boxes per minute. Include the proposed robot model, available floor space and a layout or photos. State any need for a lifting column, interlayer handling, conveyor docking or future line reconfiguration.
