EasyWork – Robot Tending Cell for Machine Tending Automation

EasyWork is a mobile cobot platform for CNC machine tending, assembly, inspection and robot demonstrations. Its compact 740 × 540 mm footprint, integrated wheels and controller storage help you move a robot setup between workstations. The standard platform supports Universal Robots and Doosan A-series configurations, subject to the exact robot and application.

Configure EasyWork around your robot and production task. Share your robot model, tooling, machine layout and relocation requirements to request a suitable mounting arrangement, integration options and project quote.

contact Us Get A Quote

EasyWork
3D View

Downloads For EasyWork

options
Factsheet

EasyWork – Mobile Cobot Workstation for Flexible Automation

EasyWork provides a portable base for a robot serving different workstations. Use it for CNC machine tending automation, assembly, inspection or pilot production where the same robot setup needs to move between tasks.

The ER-1004-00 platform measures L 740 × W 540 × H 1012 mm and weighs 52 kg. It includes a 0° robot mount, a teach-pendant bracket and a controller compartment measuring 450 × 290 × 400 mm. The robot, tooling, controls and application program must be specified for the complete installation.

mobile cobot platform

EasyWork features

ROBOT COMPATIBILITY

Standard configurations support Universal Robots and Doosan A-series. Confirm the exact robot model, mounting interface, controller fit and operating loads for your application.

MOBILE PLATFORM

Integrated wheels and a transport handle support manual relocation between workstations, training rooms and demonstration areas. Plan handling around the complete installed system.

FOUR SUPPORT FEET

Four adjustable feet support the platform during operation with the wheels lifted clear of the floor. Level the setup and verify stability for the selected robot and task.

CONTROLLER STORAGE

The enclosed 450 × 290 × 400 mm controller compartment, cable management and teach-pendant bracket help keep the robot installation organised.

COMPACT FOOTPRINT

The platform measures L 740 × W 540 × H 1012 mm and weighs 52 kg. Allow additional space for robot reach, tooling, machine access and operator movement.

CONFIGURATION OPTIONS

Choose the docking station, scanner cover and custom colour for the installation. Vehicle-loading accessories and custom mounting can be discussed in the quotation.

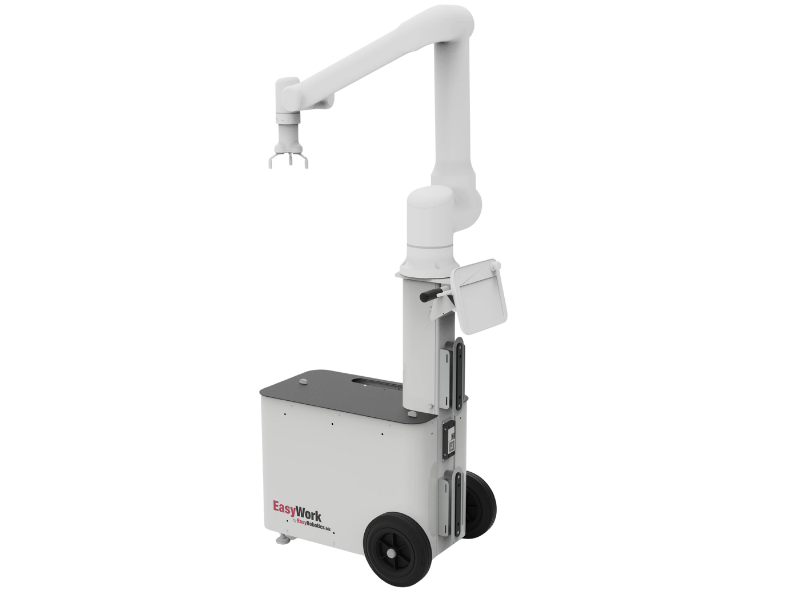

mobile robot workstation

Advantages of EasyWork Mobile Robot Platform

  • Relocate between tasks: Move a configured robot setup between production stations, pilot lines and demonstrations using the integrated handle and wheels.
  • Set up for stationary operation: Lower and level the four support feet so the wheels are clear of the floor. Confirm stability and the application setup before restarting.
  • Work in compact layouts: The 740 × 540 mm platform footprint suits areas with limited floor space, subject to robot reach, access and the complete working envelope.
  • Plan vehicle transport: A loading unit or transport roller kit is available as an option. Confirm the vehicle space and handling arrangement for the installed robot setup.
  • Adapt the configuration: Specify the mounting, controller fit, docking and tooling around the process. Other robot integrations require technical confirmation.

EasyWork – Mobile Cobot Demonstration Platform

EasyWork can carry a robot setup for employee training, workshops, trade shows and customer demonstrations. Its controller compartment and teach-pendant bracket keep the equipment together as the platform moves between locations. Explore robot training and education applications for your team.

Use demonstrations to assess robot reach, part presentation and the sequence of a proposed production task. The wheels support relocation; the adjustable feet support stationary operation. Configure the robot program, tooling and safeguards for each demonstration or training activity.

For a different robot interface, controller arrangement or process setup, discuss customized automation solutions. Include your robot model, intended tasks and transport requirements so the configuration can be quoted accurately.

collaborative robot mobility

EasyWork video

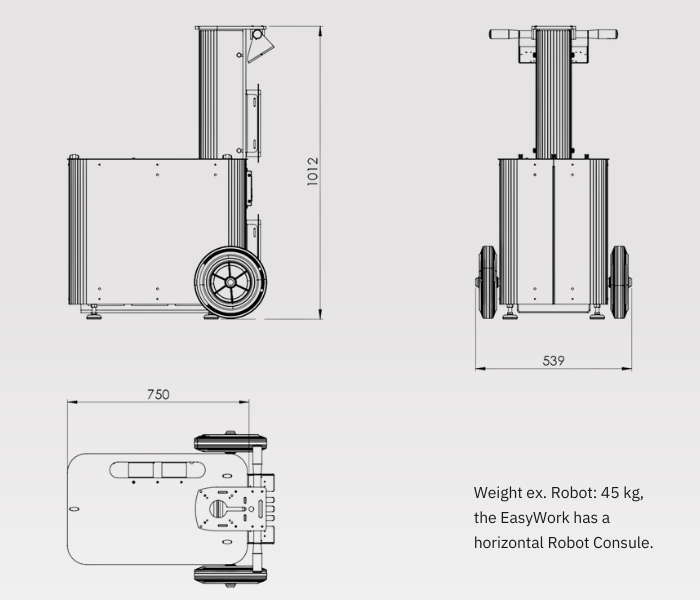

Drawing

flexible automation

Product Order Overview

ER-1004-00 EasyWork H: 1012 mm, W: 540mm, L: 740mm, Wt: 52 kg, T-Pad bracket, Compartment for controller, *only for UR and Doosan A-series
ER-1004-DS Docking station for EasyWork When mounting larger robots max 7 Kg payload robot
SC-1001 Yellow Scanner cover Cover for laser scanner
RAL-XXXX Custom RAL code RAL Code XXXXX

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Check robot compatibility, dimensions, relocation options and integration requirements before choosing your EasyWork configuration.

Standard ER-1004-00 configurations support Universal Robots UR3 and UR5 and Doosan A-series. Confirm the exact robot generation and model, mounting interface, controller fit and operating loads. Other robot integrations require technical confirmation.

Yes. EasyWork can support robot training, workshops and demonstrations. The teach-pendant bracket and controller compartment keep the setup together. Select the robot program, tooling and safeguards for the training activity and the people taking part.

An operator manually moves the platform using its transport handle and integrated wheels. At the working position, lower and level the four support feet until the wheels are clear of the floor. Check handling and stability for the complete installed system.

Specify the robot mount, robot, gripper or process tool, controls, utilities and application program. Position and level the platform, verify stability and validate the complete application before operation. Integration time depends on the selected robot, process and site requirements.

ER-1004-00 measures L 740 × W 540 × H 1012 mm and has a platform weight of 52 kg. The controller compartment measures 450 × 290 × 400 mm. Allow additional space for robot motion, tooling, access and the application layout.

The published platform specification does not require floor anchoring. Four adjustable support feet carry the platform during use, with the wheels lifted clear. Stability must be checked for the final robot, payload, reach and operating speed. A docking station is available where required for the selected configuration.

Yes. EasyWork can provide a mobile base for a robot tending a CNC machine. The complete setup needs suitable part presentation, gripping, machine communication, programming and safeguards. Confirm robot reach, floor space and repositioning requirements for each machine.

Yes, with a suitable vehicle and handling arrangement for the complete robot setup. An optional loading unit or transport roller kit can assist loading. Confirm the assembled dimensions, total weight and securing requirements when planning transport.

The order overview lists the ER-1004-DS docking station, SC-1001 scanner cover and a custom RAL colour. The docking option is listed for larger robots up to 7 kg robot payload, subject to application suitability. Loading accessories, parts plates and custom mounting can also be discussed; availability and scope are confirmed in the quotation.

Share the exact robot model, application, workpiece and tooling details, machine layout and cycle-time target. Include the controller dimensions and any docking, training or transport requirements so the platform configuration and integration scope can be quoted.
