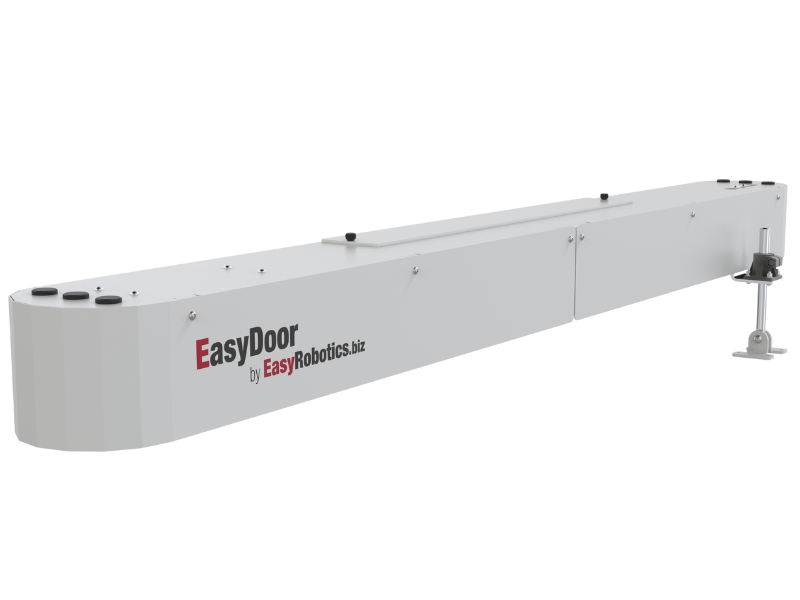

EasyDoor – Automatic CNC Door Opener

EasyDoor automates the opening and closing of CNC machine doors as part of a robot or PLC-controlled tending cycle. Built around Siemens SIDOOR technology, it supports sliding doors weighing up to 180 kg, with a standard 1500 mm one-side opener and configured double-door options.

Send your machine make and model, door weight, opening travel and preferred control interface. We can review the mounting arrangement and recommend an EasyDoor configuration for your CNC machine tending project.

Contact Us Get A Quote
options
contact Us

EasyDoor for Single and Double CNC Machine Doors

EasyDoor connects door movement to the loading and unloading sequence of a CNC machine tending system. The standard ED-1001 is a 1500 mm one-side opener weighing 60 kg. For two-sided opening, the ED-1002 double-door configuration is selected around the machine and door arrangement.

The drive learns the installed door travel and end positions during commissioning, then controls acceleration and deceleration through the opening and closing cycle. Adjustable mounting brackets and a height-adjustable pull rod help adapt it to the machine enclosure. Confirm the door weight, travel and mounting space before ordering.

automatic door opener

EasyDoor Features – Automatic Door Opening System

SINGLE & DOUBLE DOORS

Choose the standard one-side sliding-door opener or discuss a double-door arrangement. The configuration is checked against door weight, travel and mounting geometry.

LEARNED DOOR MOTION

A guided learning cycle identifies door travel and end positions. Controlled acceleration and deceleration support repeatable opening and closing.

OBSTACLE RESPONSE

The controller monitors movement against the learned door profile to detect abnormal resistance. Configure and validate the response with the machine interlocks and cell safeguards.

ROBOT & PLC CONTROL

Digital commands and status feedback connect the door to a robot or PLC. Configured Profinet or Profibus interfaces are available where required.

industrial automatic door

Connect Door Movement to the CNC Tending Cycle

EasyDoor accepts open and close commands and provides open, closed and reverse status feedback. Digital signals connect the controller to a robot or PLC; Profinet and Profibus require the appropriate configured interface. Specify the control system and signals when requesting a quote.

Coordinate door opening, part loading, door closing and the machining cycle with the machine controls. The door controller and its status relays do not replace the complete machine safety system. The integrator must check the interlocks, obstacle response and safeguards for the finished installation.

Configure EasyDoor for Your CNC Machine

The enclosed drive protects the timing belt and Siemens control components while keeping service points accessible. Sliding mounting brackets, an adjustable pull rod and different door attachment positions help adapt the opener to the machine front.

For non-standard door geometry or enclosure mounting, discuss custom mounting and automation solutions. Share machine-front photos or drawings, door weight, required travel and control details. Include any double-door, manual-switch or colour requirements so the quotation covers your installation.

sliding door system

Siemens SIDOOR Door Control Technology

Drawing

EasyDoor dimensions and mounting arrangements

Product Order Overview

ED-1001 EasyDoor 1500 mm, one side door opener, weight 60 kg
ED-1002 EasyDoor Double door 1500 mm, two side door opening
ED-1005 Manual control switch Start Stop For manually opening and closing the EasyDoor
RAL-XXXX Custom RAL code RAL Code XXXXX

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Review door capacity, mounting, controls and configuration options before requesting an EasyDoor quote.

EasyDoor is designed for industrial sliding-door automation, including CNC machine doors. ED-1001 is the standard one-side opener. Double-door and other door arrangements require a review of door weight, travel, mounting space and control requirements.

The published supported door weight is up to 180 kg. Confirm suitability for the actual door, guides, travel and operating conditions. For double-door arrangements, provide the weight of each door and the linkage details so the configuration can be checked.

The controller learns the door travel and monitors movement against the learned profile to detect abnormal resistance. Its obstacle response must be configured and tested for the installation. Door control and status feedback do not replace the machine interlocks or the complete cell safety system.

Installation includes mounting the opener and door linkage, connecting power and control signals, running the door learning cycle and commissioning the machine sequence. Brackets and pull-rod geometry are selected for the enclosure. The complete setup must be checked before production use.

Yes. Digital open and close commands and status feedback can connect EasyDoor to a robot controller or PLC. Profinet and Profibus require the corresponding configured Siemens interface. Specify your controller and preferred connection when requesting a quote.

Yes. EasyDoor can coordinate the opening and closing of a CNC machine door with robotic loading and unloading. The tending sequence, machine communication, door interlocks and robot access must be integrated for the specific machine.

EasyDoor uses Siemens SIDOOR control technology within an enclosed industrial drive assembly. Service covers protect the timing belt and pulleys while allowing access to the belt tension, pull-rod swivel, mounting brackets and door attachments for inspection and maintenance.

Yes. The options document lists ED-1002 for 1500 mm two-side door opening. The final arrangement is engineered around door weight, travel, mounting geometry and coordination between the doors. Provide the machine details so the complete configuration can be confirmed.

The order overview lists the ED-1002 double-door configuration, ED-1005 manual start/stop control switch and a custom RAL colour. Custom brackets, linkage and configured communication interfaces can also be discussed for the application.

Send the machine make and model, door weight, required opening travel, machine-front photos or drawings and available mounting space. Include the robot or PLC interface and any double-door, manual-control or custom-mounting requirements.
