Robotic Welding Workstation for Automated Fabrication

EasyDesk Welding is a robotic welding workstation for metal fabrication and assembly. Its 1200 × 800 × 12 mm plasma-nitrided steel tabletop has 16 mm holes for clamps and fixtures, supported by a 420 kg workstation with a repositionable robot console.

Plan your cobot welding setup around the parts, fixtures and welding process. Share your robot model, workpiece drawings, welding requirements and cycle-time target to request a configuration and quote.

contact Us Get A Quote

Easydesk Welding
3D View

Downloads

options
Factsheet

Flexible Cobot Welding Table for Precision and Productivity

EasyDesk Welding ED-1002-W combines a steel robot base with a plasma-nitrided, perforated welding plate. The 1200 × 800 mm work area supports part-specific fixtures, clamps and stops for automatic or semi-automatic welding and assembly. Its 12 mm plate has laser-cut 16 mm holes.

The workstation measures 1550 × 890 × 970 mm and weighs 420 kg. A pull-out 700 × 500 × 650 mm controller compartment and teach-pendant bracket support the robot installation. Configure the robot interface, welding equipment and fixture layout for the process; level and anchor the workstation before production.

EasyDesk Tray, ALU and Welding workstation configurations

EASYDESK TRAY

Choose EasyDesk Tray for organised part positions on a stainless-steel work surface. Specify the part pattern and spacing for tending, assembly or finishing tasks.

EASYDESK ALU

Choose EasyDesk ALU for an aluminum-profile tabletop that accepts compatible clamps, fixtures and tooling for changing production tasks.

EASYDESK WELDING

Choose the plasma-nitrided steel welding plate for clamps and fixtures. Its 1200 × 800 × 12 mm surface and 16 mm holes support workholding layouts for welding and fabrication.

EasyDesk Welding – Flexible and Modular Robot Workstation

  • The steel workstation includes a robot console, teach-pendant bracket and retractable controller compartment. Select the mounting interface for the exact robot brand and model.
  • Use the platform for automatic or semi-automatic welding and assembly. Confirm workpiece access, torch reach, fixtures and welding sequence for the selected parts.
  • A plasma-nitrided steel tabletop provides a durable work surface for welding fixtures and workholding.
  • Laser-cut 16 mm holes across the plate accept suitable clamps, stops and fixtures. Check the hole pattern and clamp fit when designing the tooling.
  • The robot console can be repositioned along three working sides, with 0° or 45° mounting. Check reach, robot loads, torch access and cable routing for the chosen arrangement.
  • The welding plate measures 1200 × 800 × 12 mm. Fixture and workpiece capacity must be checked for the application; the workstation weight of 420 kg is not a tabletop load rating.

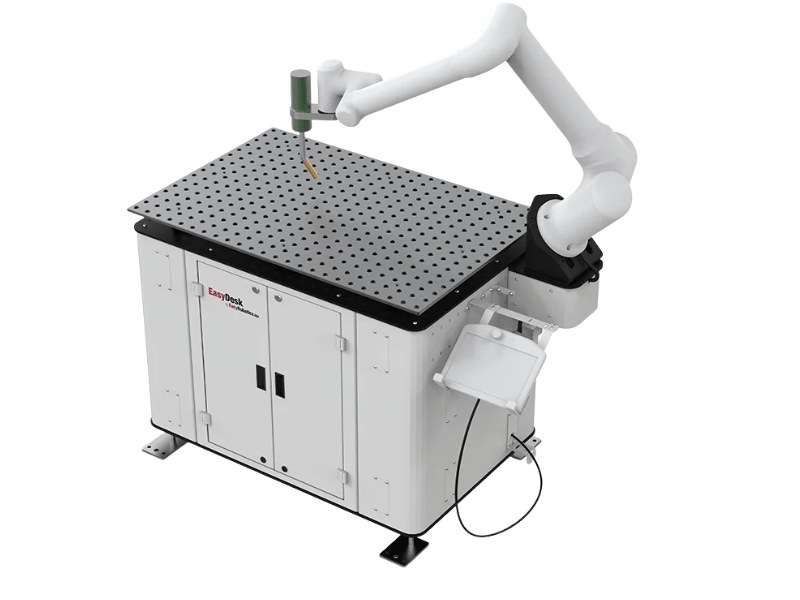

EasyDesk Welding workstation with perforated steel tabletop
EasyDesk Welding workstation with perforated steel tabletop

Configure EasyDesk Welding for Your Parts and Process

  • Plan the complete welding cell around the workstation, robot, welding package and workholding. Confirm which components and integration services are included in the quotation.
  • Fixture layout: Arrange clamps, stops and workpieces on the plasma-nitrided steel plate, keeping torch approach paths and operator access clear.
  • Work area: Use the 1200 × 800 mm plate dimensions to plan the fixture layout. Check robot reach and cable movement across the working area.
  • Relocation: A suitable pallet lifter or specified wheels can support moves between jobs. Re-level, anchor and check the application after relocation.

Features:

  • Confirm the robot adapter, base loads, mounting orientation and controller fit for the selected robot.
  • Reposition the robot console along three working sides to suit the fixture layout and access requirements.
  • Set the 0° or 45° mounting orientation in the robot configuration and validate the programmed welding paths.

Discuss the robot, torch, power source, cable pack and fixtures as one application. Grounding, fume extraction, arc-light protection and safeguards must suit the complete welding cell. For non-standard parts or layouts, ask about customized automation solutions, or review our robotic welding table guide.

EasyDesk Welding video

Drawing

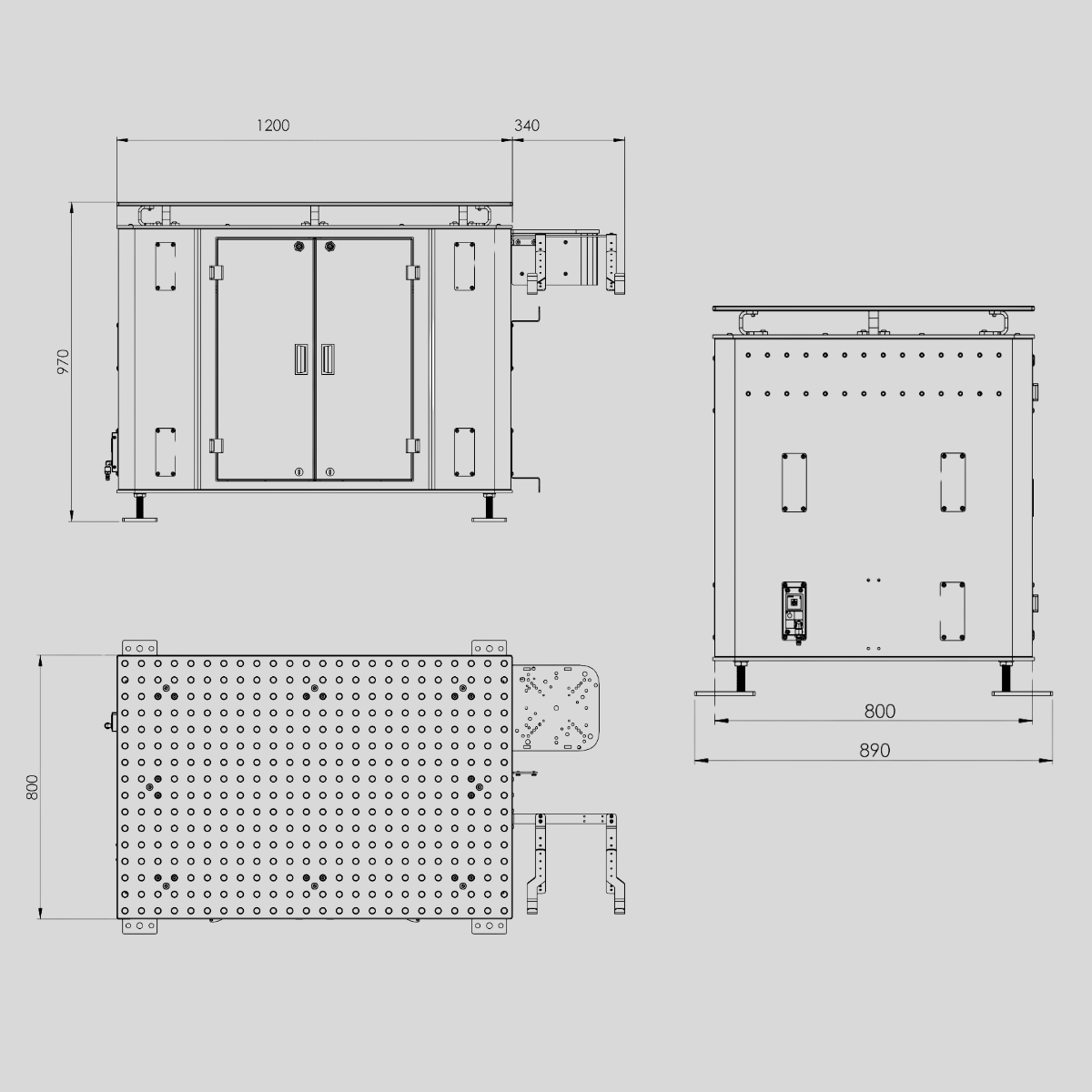

EasyDesk Welding workstation dimensions and mounting drawing

Product Order Overview

ED-1002-W EasyDesk Welding Overall size: 1550 × 890 × 970 mm; weight: 420 kg; teach-pendant bracket; controller compartment 700 × 500 × 650 mm; plasma-nitrided perforated steel plate 1200 × 800 × 12 mm with 16 mm holes
ED-1002-SE EasyDesk Safety Enclosure 2-walls, Fits all the EasyDesk versions Fits all the EasyDesk versions
ED-1003-SE EasyDesk Safety Enclosure 2 walls with extension Fits all the EasyDesk Tray and Alu
ED-1001-EC EasyDesk Enclosure - Compact Enclosed Robot Cell Fits all the EasyDesk versions
LWS-1001 Replacement laser welding safety window Uwex W × H: 297 × 210 mm. Confirm the protective specification and suitability for the selected laser and enclosure in the quotation.
GD-Wheels Wheels for EasyDesk Caster wheel with foot locker
PFF-1002-05 Extra Front/Rear dock for larger robots Extra Front/Rear dock when mounting larger robots
ER-Angle-30 Angle for EasyDesk 30 degrees 30 degrees angle
ER-Angle-45 Angle for EasyDesk 45 degrees 45 degrees angle
ER-Handle Handle for EasyDesk Handle to push/pull the EasyDesk
SC-1000 Yellow Scanner cover Cover for laser scanner
RAL-XXXX Custom RAL code RAL Code XXXXX

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Compare the EasyDesk Welding tabletop, robot mounting, installation requirements and configuration options before requesting a quote.

EasyDesk Welding ED-1002-W is a steel workstation for robotic welding, fabrication and assembly. It combines a plasma-nitrided perforated welding plate, repositionable robot console, teach-pendant bracket and pull-out controller compartment.

The workstation measures 1550 × 890 × 970 mm and weighs 420 kg. The controller compartment measures 700 × 500 × 650 mm. Allow additional space for the robot, welding equipment, safeguards and operator access when planning the complete cell.

The welding tabletop measures 1200 × 800 × 12 mm and has laser-cut 16 mm holes. Its plasma-nitrided steel surface accepts suitable clamps, stops and application-specific fixtures. Confirm the fixture loads, hole pattern and workpiece layout for the welding process.

Robot-specific mounting interfaces support a range of collaborative robots. Confirm the exact brand and model, base pattern, payload, dynamic loads, reach, mounting orientation and controller fit. Compact industrial robots require an engineering review of the complete application.

Yes. The console can be repositioned along three working sides and configured for 0° or 45° mounting. The chosen robot, torch and fixtures determine the usable reach. Cable routing, interference checks and robot software settings must match the final arrangement.

The workstation can be relocated using suitable handling equipment or specified mobility options. It must be levelled and securely anchored before robot operation. Recheck the fixture positions, programmed paths, connections and safeguards after relocation.

The workstation is one component of a complete cell. Specify the robot and adapter, torch, power source, wire feeder where required, cable pack, fixtures and application programming. Grounding, extraction, arc-light protection and safeguards depend on the process. Confirm all inclusions in the quotation.

Published options include the ED-1002-SE two-wall enclosure, ED-1001-EC enclosure, wheels, docking, mounting angles, handle, scanner cover and custom RAL colour. The ED-1003-SE extension enclosure is listed for EasyDesk Tray and ALU. Confirm enclosure fit and the protection required for the actual welding process; accessories are not included unless quoted.

The perforated tabletop supports reconfigurable clamps, stops and part-specific fixtures. Custom robot interfaces and fixture layouts can be discussed. Provide part drawings, weld locations and production requirements so access, loading and process suitability can be reviewed.

Send the robot brand and model, workpiece drawings or dimensions, materials, welding process, weld locations and target cycle time. Include existing welding equipment, fixture needs, available floor space and any enclosure or relocation requirements for a configuration and quote.
