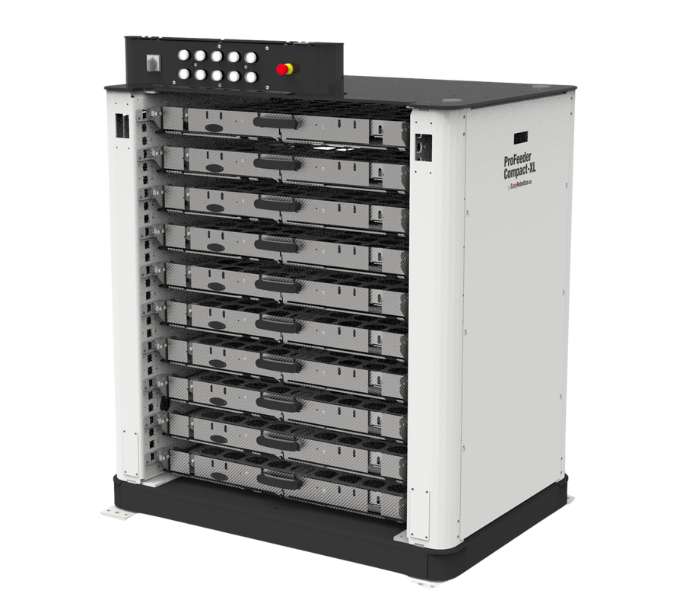

ProFeeder Compact XL High Cube for CNC Machine Tending
ProFeeder Compact XL High Cube stores workpieces for CNC machine tending in 10 large trays. Each 780 × 620 mm tray supports up to 90 kg and a maximum part height of 110 mm. Pair the feeder with a separate robot pedestal for robot mounting and controller storage.
Choose MechLock or AirLock to suit your cell controls. Share your CNC machine, robot model, part dimensions, weight and cycle time to discuss a suitable configuration and request a project quote.
ProFeeder Compact XL High Cube
3D View
ProFeeder Compact XL High Cube – industrial automation solution

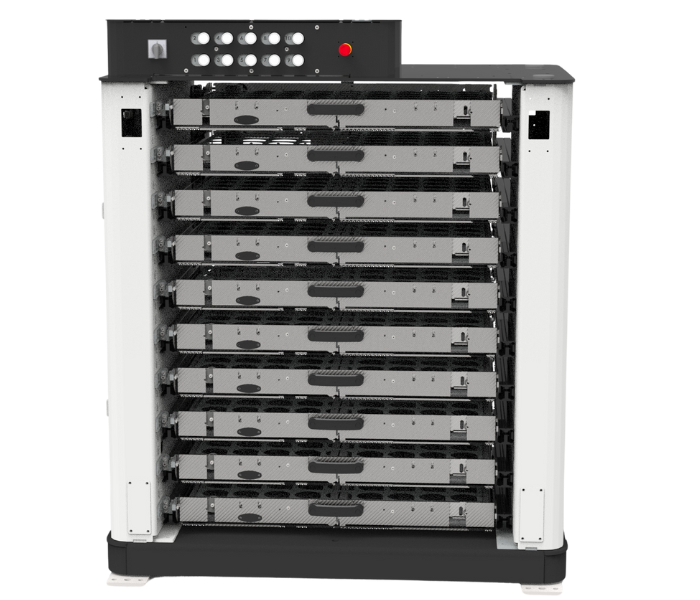

ProFeeder Compact XL High Cube provides ten drawers of parts storage for CNC machine tending automation. Its 920 × 1220 mm footprint accommodates large trays while leaving the robot mount and controller housing on a separate pedestal or project system.
Each tray has a 780 × 620 mm working area and a 90 kg load capacity. Plan the part arrangement, fixtures and robot picking positions around the 110 mm maximum part height. Usable batch capacity depends on the workpiece geometry and required spacing.
Compare ProFeeder Compact XL when selecting tray count and part clearance. High Cube provides 110 mm part height across ten trays; standard ten-tray Compact XL provides 80 mm, while five-tray Compact XL provides 160 mm. Select the model around your parts and replenishment needs.
ProFeeder Compact XL High Cube – Features
Ten-Tray Capacity
Ten trays each support up to 90 kg, with a maximum part height of 110 mm. Select a tray layout suited to the workpieces, fixtures and batch size.
Advanced Tray Storage System
Each tray measures 780 × 620 mm. Part-specific inserts, fixtures or deeper trays can be discussed as project options; confirm their effect on usable clearance and capacity.
Robot Integration
Use a separate pedestal and the correct robot-specific adapter. Confirm robot payload, reach, mounting loads, gripper and the CNC machine interface for the application.
What is an efficient industrial automation solution?
The High Cube feeder keeps workpieces organized for robot loading and unloading. A stocked drawer system can reduce waiting for manual parts supply and allow operators to focus on other tasks between replenishment visits.
Estimate time between replenishment visits from usable parts per tray, machining time and robot handling time. Tool changes, inspection requirements and the complete cell operating procedure also affect unattended operation.
A cell serving multiple machines requires a suitable robot reach, machine layout and loading sequence. Review each machine interface and cycle time before selecting the feeder, robot and pedestal configuration.
ProFeeder Compact XL High Cube
High Cube uses a separate robot pedestal, such as EasyPedestal, and a robot-specific adapter plate. The feeder itself has no integrated robot mount or controller compartment. Include the pedestal, controller housing and adapter in the project scope.
- Robot Compatibility: Confirm the exact robot model, payload, reach, mounting interface, gripper and machine controls for the proposed cell.
- Two Locking Options: MechLock uses mechanical drawer release. AirLock uses pneumatic locking with compressed air and digital I/O integration.
- Installation: Level and anchor the feeder before operation. Assess safeguarding and operating procedures for the complete robot cell.
Request a quote covering the feeder, pedestal, adapter, part fixtures and integration work. The specifications below show the two High Cube variants; share your application details to confirm the complete setup.
ProFeeder Compact XL - Video

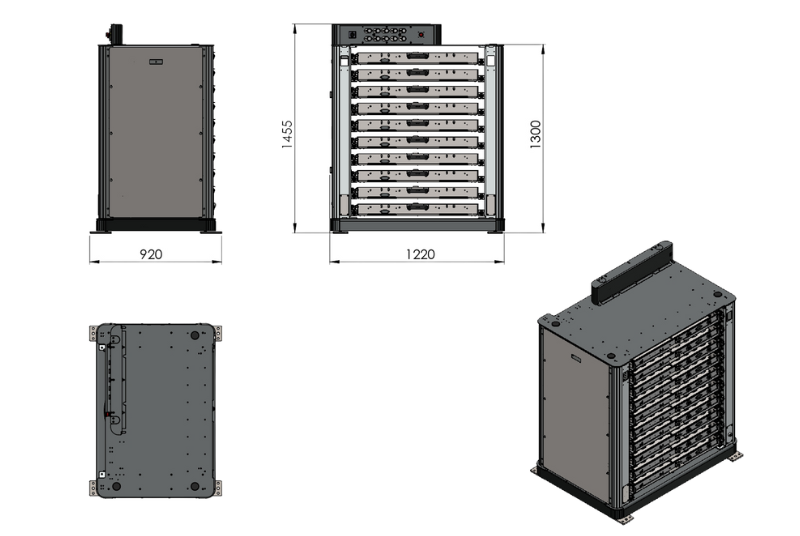

Drawing
Product Overview
| PFC-4100-10 | ProFeeder Compact XL High Cube 10 Tray Mechlock | ProFeeder Compact XL High Cube 10 Trays Mechlock H: 1300 mm x W: 1220 mm x L: 920 mm Weight: 660 kg |
| PFC-4101-10 | ProFeeder Compact XL High Cube 10 Trays Airlock | ProFeeder Compact XL High Cube 10 Trays Airlock H: 1465 mm x W: 1220 mm x L: 920 mm Weight: 675 kg |
| SC-1000 | Yellow Scanner cover | Cover for laser scanner |
| RAL-XXXX | Custom RAL code | RAL Code XXXXX |
