ProFeeder X-XL – Maximizing Efficiency

ProFeeder X-XL combines robot mounting and large parts trays for CNC machine tending. Choose 2, 5 or 10 trays, each with a 780 × 620 mm working area and a 90 kg load capacity. Maximum part height is 320 mm with 2 trays, 160 mm with 5 trays or 80 mm with 10 trays.

MechLock and AirLock versions are available within a 920 × 1420 mm footprint. Share your CNC machine, robot model, part dimensions, weight and cycle time to select a suitable configuration and discuss integration requirements.

contact Us Get A Quote

ProFeeder X-XL
3D View

Downloads for Profeeder X XL

options
Factsheet

ProFeeder X-XL Robotic Platform

ProFeeder X-XL provides drawer-based parts storage and an integrated robot mount for CNC machine tending automation. It organizes workpieces for robot loading and unloading, helping reduce repetitive manual handling between machining cycles.

The floor-standing cell measures 1420 mm wide and 920 mm long, with 2, 5 or 10 trays. Position it beside the machine on a suitable floor and secure the anchoring points before operation. Compare ProFeeder X if your application needs a narrower cell.

Select the tray count around part height: up to 320 mm for 2 trays, 160 mm for 5 trays or 80 mm for 10 trays. Integration requires a robot-specific adapter plate; confirm the robot model, payload, reach, gripper and machine interface for your application.

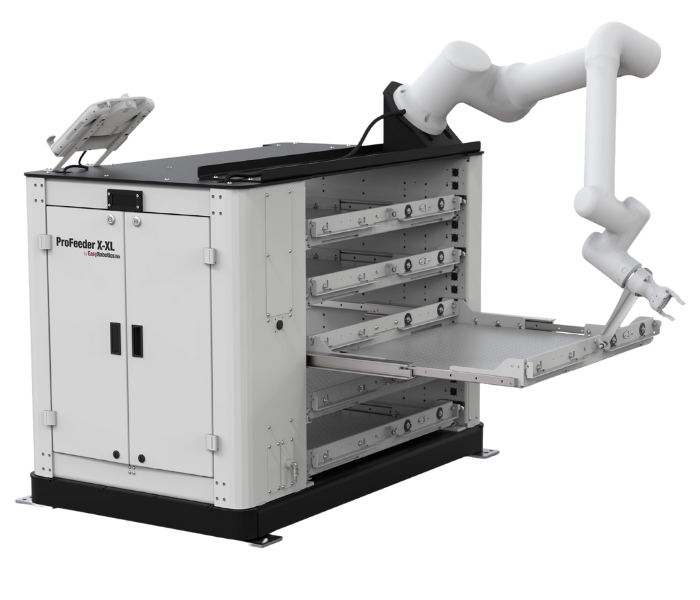

robot machine tending cell

ProFeeder X-XL Features

Exceptional Load Capacity

The ProFeeder X-XL robotic feeder supports up to 90 kg per tray with ≤ 2.5 mm deflection, ensuring stable and reliable handling of heavy workpieces in CNC machine tending applications.

Spacious, Flexible Trays

Choose 2, 5 or 10 trays, each with a 780 × 620 mm working area. Match tray count to part height, batch quantity and the required time between replenishment.

Two Locking Options

MechLock uses a mechanical drawer release. AirLock uses pneumatic locking with digital I/O. Select the version to suit the cell controls and operating requirements.

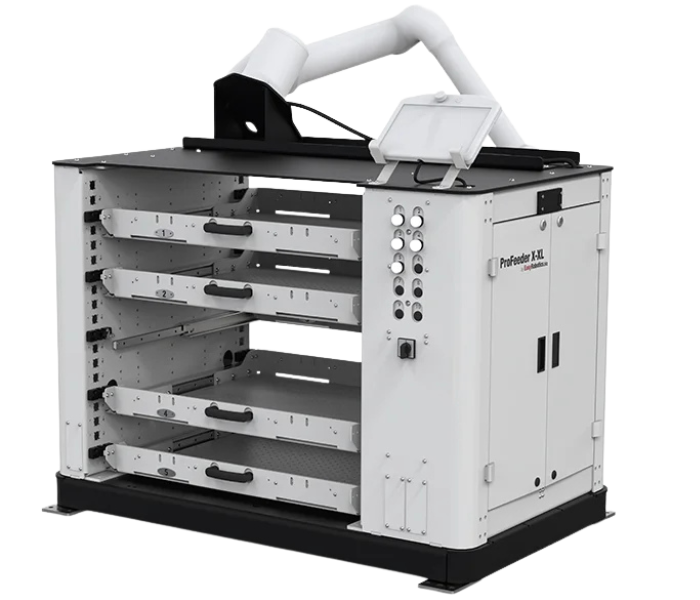

multiple tray robot cell

Robotic platform specifications

The X-XL combines large trays, robot mounting and controller storage in one cell. The specifications below help assess available floor space and workpiece capacity. Allow additional clearance for extended drawers, operator access and the robot working area.

Let’s review the ProFeeder X-XL specifications:

  • Overall dimensions: H 1050 × W 1420 × L 920 mm
  • Available with 2, 5 or 10 trays, each sized 780 × 620 mm
  • Maximum workpiece height: 320 mm with 2 trays; 160 mm with 5 trays; 80 mm with 10 trays
  • Maximum deflection: ≤ 2.5 mm under a load of 90 kg per tray

MechLock operates without compressed air. AirLock requires a compressed-air connection and digital I/O integration. For AirLock applications, explore EasyControl machine tending software and confirm the required integration scope. Safeguarding must be assessed for the complete robot cell.

Advanced Robotic Drawer System for CNC Automation

The ProFeeder X-XL drawer system keeps workpieces in defined locations for robot picking. Usable tray capacity and machining cycle time determine how often parts need replenishment; fixtures and the robot program must suit the selected workpieces.

  • Scalable robotic platform with flexible cobot integration for both small-batch production and large-scale manufacturing.
  • Tray load capacity is 90 kg per tray; check the robot payload and gripper capacity separately.
  • Choose a tray layout and loading procedure suited to part geometry, batch changes and operator access.

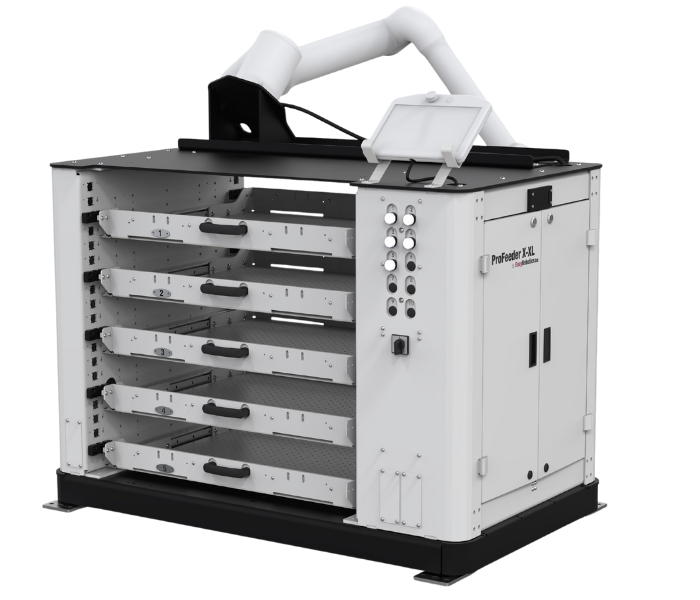

industrial automation feeding cell

ProFeeder X-XL Video

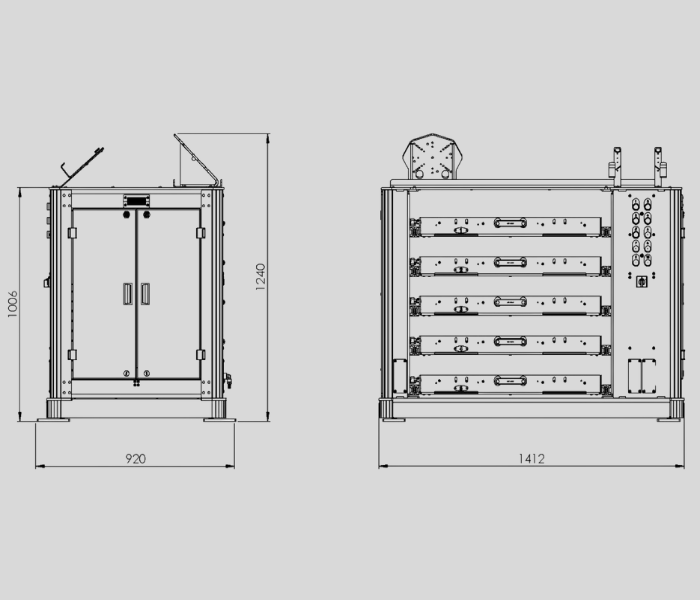

Drawing

industrial automation feeding cell

Product order overview

PFX-2100-02 ProFeeder X-XL 2x 90kg tray w. Mechlock H: 1050 mm, W: 1420, L: 920, Wt: 535 kg, 2x 780x620mm tray area, 2,5mm deflection at 90kg, Max part height 320mm, Mechlock
PFX-2101-02 ProFeeder X-XL 2x 90kg tray w. Airlock H: 1050 mm, W: 1420, L: 920, Wt: 550 kg, 2x 780x620mm tray area, 2,5mm deflection at 90kg, Max part height 320mm, Airlock
PFX-2100-05 ProFeeder X-XL 5x 90kg tray w. Mechlock H: 1050 mm, W: 1420, L: 920, Wt: 685 kg, 5x 780x620mm tray area, 2,5mm deflection at 90kg, Max part height 160mm, Mechlock
PFX-2101-05 ProFeeder X-XL 5x 90kg tray w. Airlock H: 1050 mm, W: 1420, L: 920, Wt: 700 kg, 5x 780x620mm tray area, 2,5mm deflection at 90kg, Max part height 160mm, Airlock
PFX-2100-10 ProFeeder X-XL 10 x 90kg tray w. Mechlock H: 1050 mm, W: 1420, L: 920, Wt: 725 kg, 10 x 780x620mm tray area, 2,5mm deflection at 90kg, Max part height 80mm, Mechlock
PFX-2101-10 ProFeeder X-XL 10x 90kg tray w. Airlock H: 1050 mm, W: 1420, L: 920, Wt: 780 kg, 10x 780x620mm tray area, 2,5mm deflection at 90kg, Max part height 80mm, Airlock
ER-Angle-30 Angle for ProFeeder 30 degrees 30 degrees angle
ER-Angle-45 Angle for ProFeeder 45 degrees 45 degrees angle
SC-1000 Yellow Scanner cover Cover for laser scanner
RAL-XXXX Custom RAL code RAL Code XXXXX

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Choosing the right automation partner isn’t just about machines — it’s about reliability, results, and long-term support. At EasyRobotics, we deliver all three.

ProFeeder X-XL provides parts storage and robot mounting for CNC machine tending. A robot picks workpieces from the trays for machine loading and unloading, reducing repetitive manual handling.

Multiple trays provide a supply of workpieces between replenishment visits. The effect on throughput depends on machining time, robot cycle time, part layout, tooling and the complete machine interface.

Each 780 × 620 mm tray supports up to 90 kg. MechLock and AirLock versions are available. Confirm the robot payload, mounting requirements and safeguarding for the complete application.

Yes, the scalable robotic platform and flexible cobot integration allow the ProFeeder X-XL to support small-batch manufacturing as well as large-scale automated production.

A stocked drawer system can reduce waiting for an operator to supply the next workpiece. Plan replenishment around usable tray capacity, cycle time and the loading procedure; it does not eliminate tooling, maintenance or quality-related stops.

ProFeeder X-XL supports a range of collaborative robots using a robot-specific adapter plate. Confirm the exact robot model, payload, reach, mounting loads, gripper and machine interface before ordering.

Each tray measures 780 × 620 mm and supports up to 90 kg. Maximum part height is 320 mm for the 2-tray model, 160 mm for the 5-tray model and 80 mm for the 10-tray model. Usable capacity depends on part geometry, fixtures and the robot setup.

The trays organize parts in defined positions for robot picking. Configure fixtures, part spacing and the robot program around the workpiece geometry and the required loading and unloading sequence.

It can support operation between operator replenishment visits. Available unattended time depends on tray capacity, machining and handling cycles, tooling, quality checks and the validated operating conditions of the complete cell.

The ProFeeder X-XL combines high capacity, scalable automation, flexible cobot integration, and reliable robotic trays, making it a powerful solution for improving productivity and efficiency in modern CNC manufacturing.
